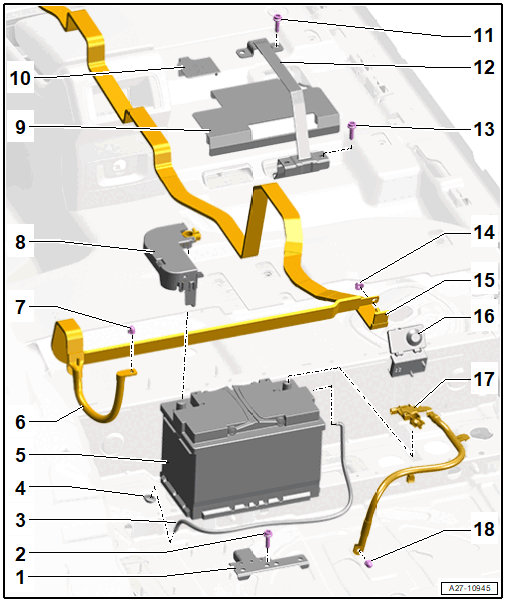

OVERVIEW - Battery -A-, 0K4 AND VH2
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Retaining Bracket
- Bolt
- Quantity: 2
- 20 Nm
- Central Venting System Hose
- Grommet
- For the central venting system hose
- Battery
- Checking. Refer to Battery, Checking .
- Removing and Installing. Refer to BATTERY, REMOVING AND INSTALLING .
- Positive Cable
- From the main fuse panel
- Nut
- Tightening Specification. Refer to OVERVIEW - MAIN FUSE PANEL .
- Main Fuse Panel
- Overview. Refer to OVERVIEW - MAIN FUSE PANEL .
- Disconnecting and Connecting. Refer to Battery -A-, DISCONNECTING AND CONNECTING, 0K0 AND 0K3 .
- Nut: 6 Nm
- Battery Cover
- Positive Terminal Cover
- Bolt
- Quantity: 2
- 20 Nm
- Securing Strap
- With battery bracket
- Bolt
- Quantity: 2
- 20 Nm
- Nut
- 18 Nm
- Positive Cable
- To the Terminal 30 Wire Junction -TV2-
- Wire Junction
- Replace after removing
- Removing and Installing. Refer to POSITIVE CABLE WIRE JUNCTION, REMOVING AND INSTALLING .
- Ground Wire
- With Battery Monitoring Control Module -J367-
- Disconnecting and Connecting. Refer to Battery -A-, DISCONNECTING AND CONNECTING, 0K0 AND 0K3 .
- Removing and Installing. Refer to GROUND CABLE WITH Battery Monitoring Control Module -J367-, REMOVING AND INSTALLING .
- Nut: 6 Nm
- Nut
- 20 Nm
