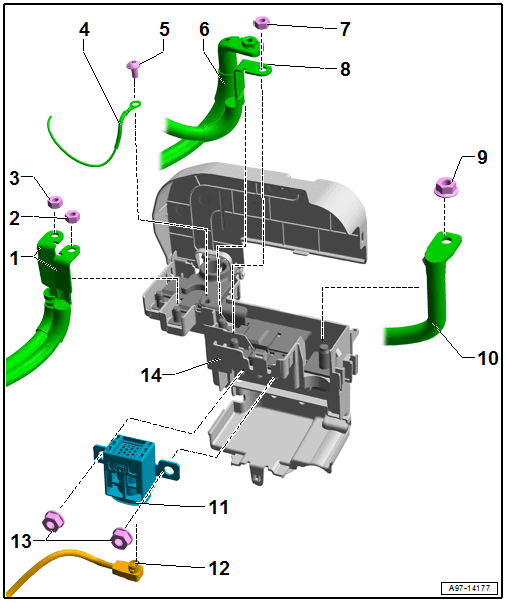

Overview - Main Fuse Panel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Line
- Allocation. Refer to Wiring Diagram.
- Nut
- 7.5 Nm
- Nut
- 7.5 Nm
- Line
- Allocation. Refer to Wiring Diagram.
- Bolt
- 3.5 Nm
- Line
- Allocation. Refer to Wiring Diagram.
- Tightening specification: 7.5 Nm
- Nut
- 7.5 Nm
- Line
- Allocation. Refer to Wiring Diagram.
- Nut
- 18 Nm
- Line
- Allocation. Refer to Wiring Diagram.
- Vehicles with 48 V system: to the coupling point under the rear bench seat
- Tightening specification: 18 Nm.
- Battery Interrupt Igniter -N253-
- Removing and Installing. Refer to the appropriate Service Information. .
- Connector
- For the Battery Interrupt Igniter -N253-
- Nut
- Replace after removing
- Quantity: 2
- Tightening specification. Refer to the appropriate Service Information. .
- Main Fuse Panel
- On the battery
- Removing and Installing. Refer to MAIN FUSE PANEL ON BATTERY, REMOVING AND INSTALLING .
