Overview - Battery Jump Start Terminal
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

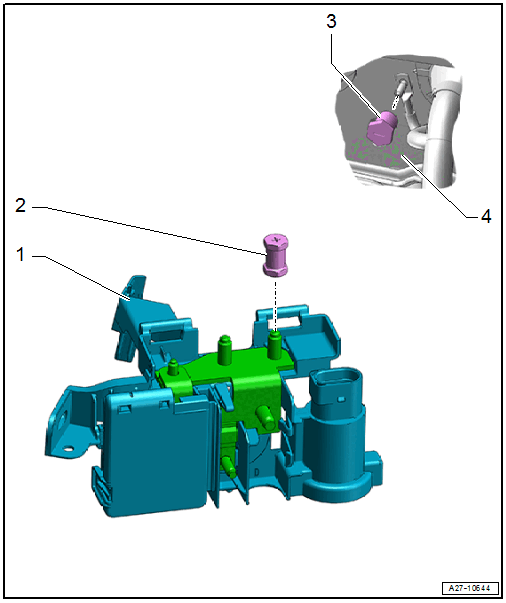

- Terminal 30 Wire Junction -TV2-
- With jump start point
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - RELAY PANEL, INSTRUMENT PANEL, E-BOXES ENGINE COMPARTMENT .
- Positive Terminal
- 18 Nm
- Negative Terminal
- 9 Nm
- Body
