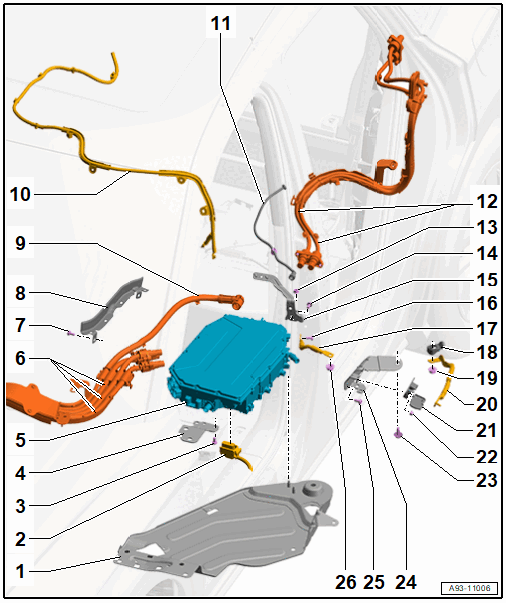

Component Location Overview - Electric Drive Power And Control Electronics And Mount, AUDI Q5
WARNING: This page is about a different car, the 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi Q5 e, and 2023 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.
- Impact Guard
- For the electric drive power and control electronics
- Removing and Installing. Refer to OVERVIEW - UNDERBODY BRACING .
- Connector
- Bolt
- Quantity: 2
- 20 Nm
- Front Bracket
- For Electric Drive Power and Control Electronics -JX1-
- Removing and Installing. Refer to BRACKET FOR Electric Drive Power and Control Electronics -JX1-, REMOVING AND INSTALLING, AUDI Q5 .
- Electric Drive Power and Control Electronics -JX1-
- Removing and Installing. Refer to ELECTRIC DRIVE POWER AND CONTROL ELECTRONICS, REMOVING AND INSTALLING, AUDI Q5 .
- Drive Motor High-Voltage Wiring Harness -PX2-
- To the Electric Drive Motor -V141-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - HIGH-VOLTAGE CABLES .
- Bolt
- Cable Holder
- High-Voltage Cable
- To the Electrical A/C Compressor - V470- and to the High-Voltage Heater (PTC) -Z115-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - HIGH-VOLTAGE CABLES .
- B+ Wire
- To the Wire Junction -TV1-
- Nut tightening specification: 9 Nm
- Screw tightening specification: 1.5 Nm
- Pressure Equalization Line
- High-Voltage Wiring Harness for High-Voltage Battery -PX1-
- From the Hybrid Battery Unit -AX1-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - HIGH-VOLTAGE CABLES .
- Nut
- Quantity: 2
- 20 Nm
- Bolt
- Quantity: 2
- 20 Nm
- Rear Bracket
- For Electric Drive Power and Control Electronics -JX1-
- Removing and Installing. Refer to BRACKET FOR Electric Drive Power and Control Electronics -JX1-, REMOVING AND INSTALLING, AUDI Q5 .
- Bolt
- Tightening Specification. Refer to the appropriate Service Information .
- Potential Equalization Cable
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - POTENTIAL EQUALIZATION CABLES, AUDI Q5 .
- Wire Protection
- For the B+ wire
- Nut
- 20 Nm
- After installing, coat with Conservation Wax. Refer to the Parts Information.
- B+ Wire
- Supply line for the Electric Drive Power and Control Electronics -JX1-
- Housing
- For the B+ wire
- Nut
- Quantity: 2
- 1.5 Nm
- Bolt
- 20 Nm
- Left Bracket
- For Electric Drive Power and Control Electronics -JX1-
- Removing and Installing. Refer to BRACKET FOR Electric Drive Power and Control Electronics -JX1-, REMOVING AND INSTALLING, AUDI Q5 .
- Bolt
- Quantity: 2
- 20 Nm
- Nut
- Tightening Specification. Refer to COMPONENT LOCATION OVERVIEW - POTENTIAL EQUALIZATION CABLES, AUDI Q5 List Item:Nut.
