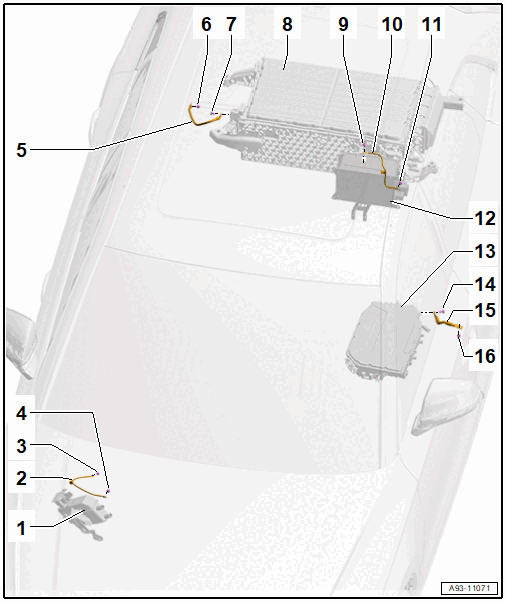

Component Location Overview - Potential Equalization Cables, AUDI Q5
WARNING: This page is about a different car, the 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi Q5 e, and 2023 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.
- High-Voltage Heater (PTC) -Z115-
- Potential Equalization Cable
- For high-voltage heater (PTC)
- Removing and Installing. Refer to POTENTIAL EQUALIZATION CABLE, REMOVING AND INSTALLING, High-Voltage Heater (PTC) -Z115-, AUDI Q5 .
- Tightening specification: 9 Nm
- Nut
- 9 Nm
- Nut
- 9 Nm
- Potential Equalization Cable
- For the high-voltage battery
- Removing and Installing. Refer to POTENTIAL EQUALIZATION CABLE, REMOVING AND INSTALLING, Hybrid Battery Unit -AX1-, AUDI Q5 .
- Nut
- 9 Nm
- Bolt
- 9 Nm
- Hybrid Battery Unit -AX1-
- Bolt
- 9 Nm
- Potential Equalization Cable
- For the High-Voltage Battery Charger 1
- Removing and Installing. Refer to POTENTIAL EQUALIZATION CABLE, REMOVING AND INSTALLING, High-Voltage Battery Charger 1 -AX4-, AUDI Q5 .
- Nut
- 20 Nm
- High-Voltage Battery Charger 1 -AX4-
- With High-Voltage Battery Charger Control Module -J1050-
- Electric Drive Power and Control Electronics -JX1-
- Bolt
- 20 Nm
- Potential Equalization Cable
- For electric drive power and control electronics
- Removing and Installing. Refer to POTENTIAL EQUALIZATION CABLE, REMOVING AND INSTALLING, Electric Drive Power and Control Electronics -JX1-, AUDI Q5 .
- Nut
- 20 Nm
