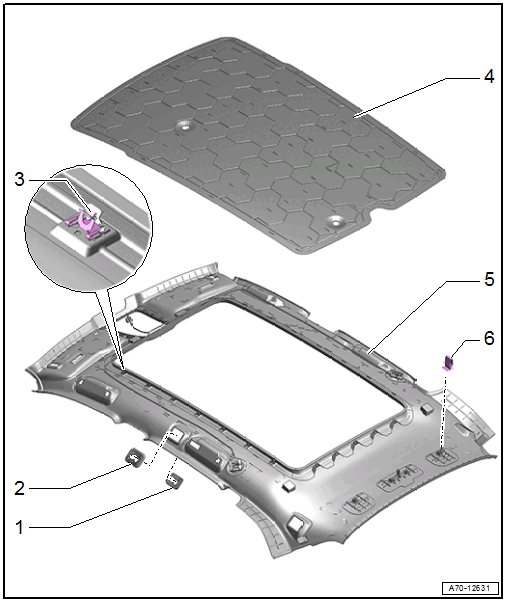

Overview - Headliner
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Trim
- For the screen separator mounting eye
- Quantity: 4
- Clipped to the bracket in the headliner
- Bracket
- For the mounting eye trim
- Quantity: 4
- Clipped into the headliner with the trim
- Clip
- For vehicles with sliding sunroof
- Quantity: 23
- Replace damaged or deformed clips
- Roof Reinforcement
- For vehicles without a sliding sunroof
- Refer to ROOF REINFORCEMENT, REMOVING AND INSTALLING
- Headliner
- Refer to HEADLINER, REMOVING AND INSTALLING
- Refer to HEADLINER, LOWERING
- Refer to HEADLINER, LOWERING FOR ROOF ANTENNA REMOVAL
- Clip
- Quantity: 4
- Remove any remaining clips in the body mounting points using the Omega Clip Tool :T40280 . To install, insert into the headliner.
- Replace damaged or deformed clips
