Headliner, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of injury due to involuntary deployment.
- Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
-- Remove the right luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
-- Lower the headliner. Refer to HEADLINER, LOWERING .
-- Move the front seats into the deepest and most forward position and position the backrest as far toward the front as it will go.
-- Low rear seat: fold the rear seat backrests forward.

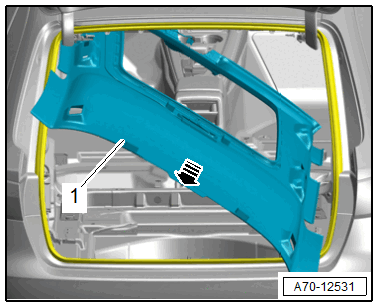

-- Carefully pull the headliner -1- toward the rear and lower on the right side of the vehicle.
-- Carefully remove the headliner through the lid opening -arrow-.
TIP
-- To do so bend the headliner on the edges lightly and guide it past the constrictions.
