Tie Down Bracket, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the tie-downs. Refer to TIE DOWN, REMOVING AND INSTALLING .

-- Remove the rear luggage compartment floor. Refer to LUGGAGE COMPARTMENT FLOOR, REMOVING AND INSTALLING .

-- Remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

Vehicle without a high-voltage system

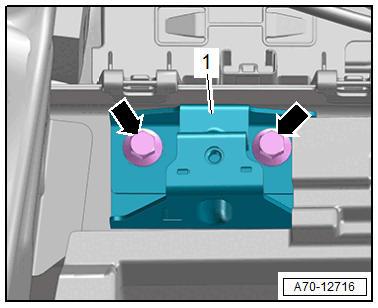

-- Rear bracket: remove the bolts -arrows- and the bracket -1-.

Courtesy of AUDI OF AMERICA, LLC

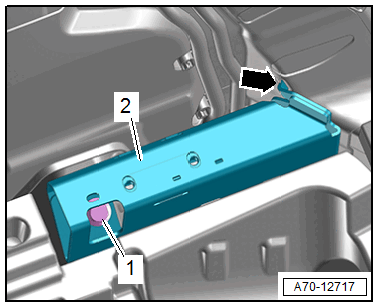

-- Front bracket: remove the bolt -1-, detach the bracket -2- from the mount -arrow- and remove.

Courtesy of AUDI OF AMERICA, LLC

Vehicles with a high-voltage system

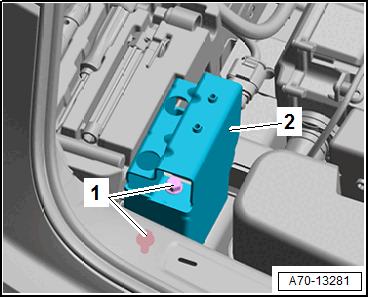

-- Rear bracket: remove the bolts -1- and the bracket -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Right rear bracket: remove the subwoofer if installed. Refer to COMPONENT LOCATION OVERVIEW - SOUND SYSTEM .

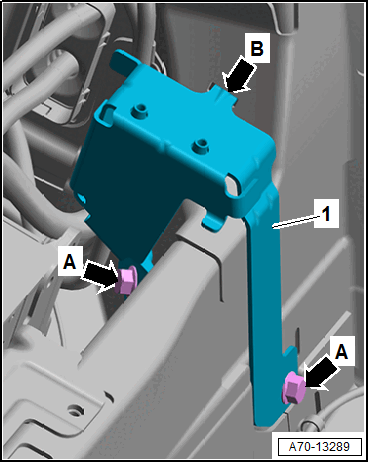

-- Front bracket: remove the bolts -A arrows-, detach the bracket -1- from the mount -arrow B- and remove.

Courtesy of AUDI OF AMERICA, LLC
