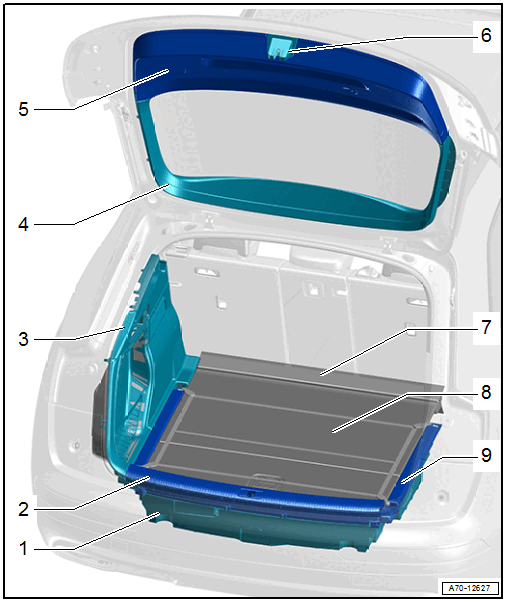

Component Location Overview - Luggage Compartment Trim Panels
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Storage Compartment Tools
- Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR
- Lock Carrier Trim Panel
- Luggage Compartment Side Trim Panel
- Rear Lid Upper Trim Panel
- Refer to OVERVIEW - REAR LID LOWER TRIM PANEL
- Rear Lid Lower Trim Panel
- Refer to OVERVIEW - REAR LID LOWER TRIM PANEL
- Rear Lid Latch Trim Panel
- Refer to OVERVIEW - REAR LID LOWER TRIM PANEL
- Front Luggage Compartment Floor
- Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR
- Rear Luggage Compartment Floor
- Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR
- Rail/Gap Cover
- Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR
