Overview - Heater And A/C Unit Attachments, Air Distribution Housing, Heat EXCHANGER, Etc.

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

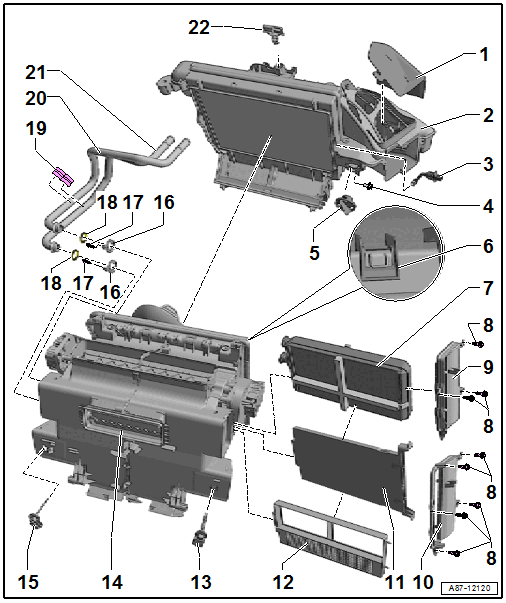

Fig 1: Exploded View Of Heater And A/C Unit Attachments, Air Distribution Housing, Heat Exchanger, Etc.

Courtesy of AUDI OF AMERICA, LLC

Insulation
- Between the air duct in the air distribution housing and the one in the resonator chamber in the air intake manifold.
Evaporator Housing
- With the evaporator installed by the manufacturer
- Depending on the version, further removal may not be necessary. Refer to OVERVIEW - EVAPORATOR HOUSING .
- Evaporator, Removing and Installing. Refer to EVAPORATOR IN HEATER AND A/C UNIT, REMOVING AND INSTALLING .
Evaporator Vent Temperature Sensor -G263-
- Removing and Installing. Refer to Evaporator Vent Temperature Sensor -G263-, REMOVING AND INSTALLING .
Plug
- Plugs for example 8D0 819 598. Refer to the Parts Information.
- Only present on a heater and A/C unit, on which cleaning of the evaporator has taken place. Refer to EVAPORATOR IN HEATER AND A/C UNIT, CLEANING, WITH Suction Feed Spray Gun .
Cap
- For the connection to the glove compartment cooling
- Not present on the glove compartment cooling
Catch
- Open carefully
Heater Core for the Heater
- Removing and Installing. Refer to HEATER CORE, REMOVING AND INSTALLING .
- Check the glued-on foam seals for damage and proper bonding. Refer to HEATER CORE, REMOVING AND INSTALLING .
Screw
- 1 Nm
Heat Exchanger Cover
- For vehicles without Auxiliary Heater Heating Element -Z35-. Refer to the Parts Information.
- There are different versions. Refer to the Parts Information.
- Removing and Installing. Refer to HEATER CORE, REMOVING AND INSTALLING .
Heat Exchanger Cover
- For vehicles with Auxiliary Heater Heating Element -Z35-. Refer to the Parts Information.
- There are different versions. Refer to the Parts Information.
- Removing and Installing. Refer to HEATER CORE, REMOVING AND INSTALLING and Auxiliary Heater Heating Element -Z35-, REMOVING AND INSTALLING .
Auxiliary Heater Heating Element -Z35-
- Removing and Installing. Refer to Auxiliary Heater Heating Element -Z35-, REMOVING AND INSTALLING .
- Installed depending on the equipment and engine
Zone Partition Grille
- Only for vehicles with a "High" A/C system without an Auxiliary Heater Heating Element -Z35-. Refer to the Parts Information.
- There are different versions. Refer to the Parts Information.
- Removing and Installing. Refer to HEATER CORE, REMOVING AND INSTALLING and Auxiliary Heater Heating Element -Z35-, REMOVING AND INSTALLING .
Right Footwell Vent Temperature Sensor -G262-
- Only for vehicles with a "High" A/C system
- Removing and Installing. Refer to Right Footwell Vent Temperature Sensor -G262-, REMOVING AND INSTALLING .
- Check the Right Footwell Vent Temperature Sensor -G262-. Use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function.
- On vehicles with a "Low" A/C system (or with a heater without an A/C system) the mount on the heater and A/C unit is not present or is closed with a plug.
Heater and A/C Unit Air Distribution Housing with Evaporator
- There are different versions. Refer to the Parts Information.
- Heater and A/C Unit with Evaporator, Removing and Installing. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
Left Footwell Vent Temperature Sensor -G261-
- Removing and Installing. Refer to Left Footwell Vent Temperature Sensor -G261-, REMOVING AND INSTALLING .
Screw-Type Clamp
- Replacing. Refer to the Parts Information.
- Removing and installing on the heater core. Refer to HEATER CORE, REMOVING AND INSTALLING .
Screw
- 2 Nm
- Removing and installing on the heater core. Refer to HEATER CORE, REMOVING AND INSTALLING .
O-Ring Seal
- Replacing. Refer to the Parts Information.
- Coat lightly with coolant before installing. Refer to HEATER CORE, REMOVING AND INSTALLING .
Coolant Pipe Spacer
- Is clipped in on both coolant pipes
Coolant Pipe to Heater Core
- Coolant return
- Removing and installing on the heater core. Refer to HEATER CORE, REMOVING AND INSTALLING .
- Can only be replaced when the heater and A/C unit is removed.
Coolant Pipe to Heater Core
- Coolant supply
- Removing and installing on the heater core. Refer to HEATER CORE, REMOVING AND INSTALLING .
- Can only be replaced when the heater and A/C unit is removed.
Bracket for Coolant Pipes
