CLUTCH PLATE, REMOVING AND INSTALLING, A/C COMPRESSOR "Sanden" (WITH A/C Clutch -N25-): Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Perform the preparatory work. Refer to PRELIMINARY WORK FOR REPLACING BELT PULLEY .
-- If equipped remove the closure cap (not present here).

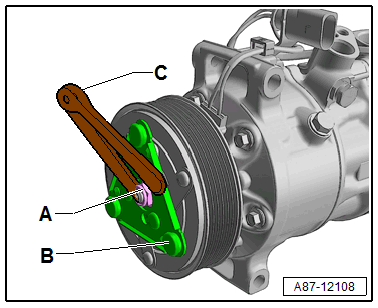

-- Hold the clutch plate -B- for example with a commercially available pin wrench -C- and remove the nut -A-.
