Component Location Overview - Relay Panel, Instrument Panel, E-Boxes, Luggage Compartment
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

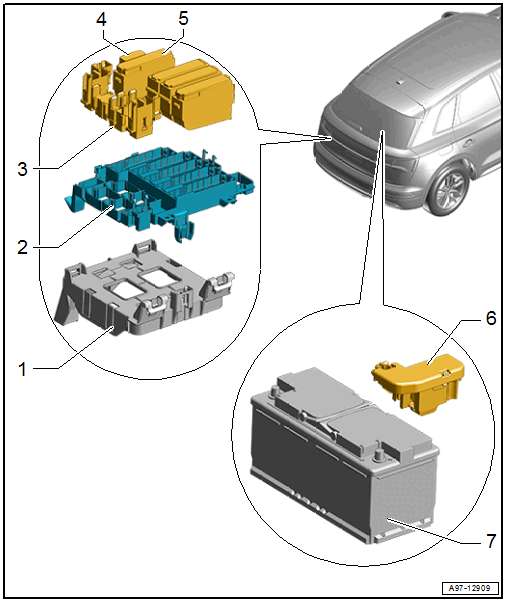

- Mount
- For the relay and fuse panel
- Relay and Fuse Panel 2 -SR2-
- Removing and Installing. Refer to Relay and Fuse Panel 2 -SR2-, REMOVING AND INSTALLING .
- Relay Mount
- Allocation. Refer to Wiring Diagram.
- Auxiliary Fuse Panel
- Fuse Panel
- Allocation. Refer to Wiring Diagram.
- Main Fuse Panel
- Overview. Refer to OVERVIEW - MAIN FUSE PANEL .
- Battery
