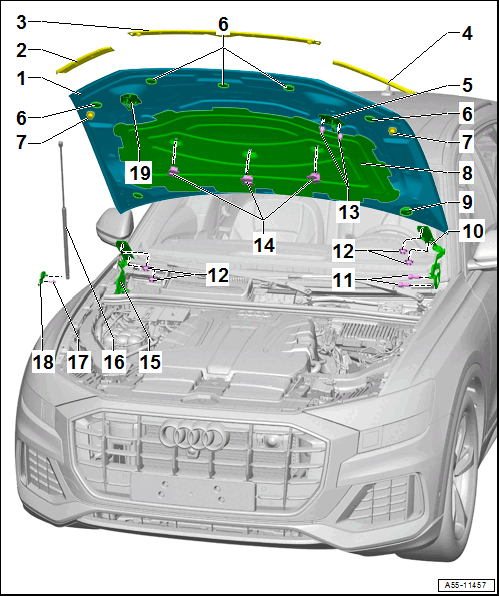

Overview - Hood
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Hood
- Removing and Installing. Refer to HOOD, REMOVING AND INSTALLING .
- Adjusting. Refer to HOOD, ADJUSTING .
- Impact Guard
- Right side
- Removing and Installing. Refer to SIDE IMPACT GUARD, REMOVING AND INSTALLING .
- Impact Guard
- Center
- Removing and Installing. Refer to CENTER IMPACT GUARD, REMOVING AND INSTALLING .
- Impact Guard
- Left side
- Removing and Installing. Refer to SIDE IMPACT GUARD, REMOVING AND INSTALLING .
- Striker
- Left
- Removing and Installing. Refer to STRIKER, REMOVING AND INSTALLING .
- Adjusting. Refer to SIDE AND HEIGHT ADJUSTMENT AT STRIKER .
- Plug
- Adjusting Buffer
- Adjusting. Refer to HEIGHT, ADJUSTING USING ADJUSTING BUFFER .
- Insulation
- Removing and Installing. Refer to INSULATION, REMOVING AND INSTALLING .
- Grommet
- Hinge
- Left
- Removing and Installing. Refer to HINGES, REMOVING AND INSTALLING .
- Adjusting. Refer to SIDE, LENGTH AND HEIGHT ADJUSTMENT AT HINGE .
- Bolt
- Quantity: 2
- 21 Nm
- Nut
- Quantity: 2
- 21 Nm
- Nut
- Quantity: 2
- 8 Nm
- Clip
- For the insulation
- Engage audibly
- Hinge
- Right
- Removing and Installing. Refer to HINGES, REMOVING AND INSTALLING .
- Adjusting. Refer to SIDE, LENGTH AND HEIGHT ADJUSTMENT AT HINGE .
- Gas-Filled Strut
- Removing and Installing. Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .
- Venting. Refer to GAS-FILLED STRUT, VENTING .
- Bolt
- 21 Nm
- Mounting Bracket
- for the gas-filled strut
- Striker
- Right
- Removing and Installing. Refer to STRIKER, REMOVING AND INSTALLING .
- Adjusting. Refer to SIDE AND HEIGHT ADJUSTMENT AT STRIKER .
