Height, Adjusting Using Adjusting Buffer
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Adjustment dimensions. Refer to ADJUSTMENT DIMENSIONS .
Procedure

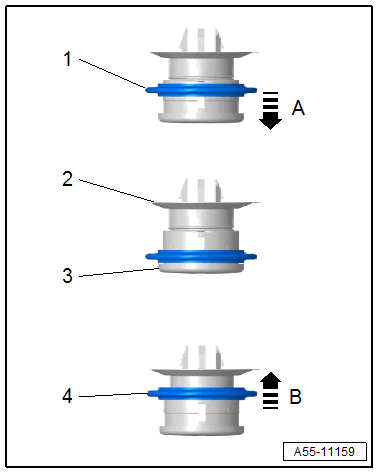

-- Open the hood and release the retainer -1- -arrow A-.
-- Completely remove the stop -3- from the adjusting buffer -2-.
-- Place the hood slowly on the stop until the hood gap dimension to the fender is reached.
-- Open the hood and lock the retainer -4- -arrow B-.
