Height Adjustment at Hinge:
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .
-- Remove the striker. Refer to STRIKER, REMOVING AND INSTALLING .

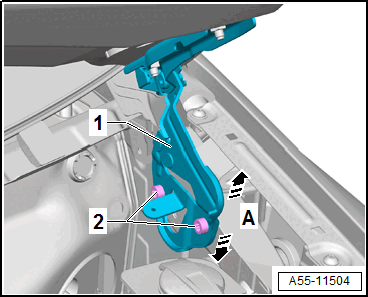

-- Loosen the bolts -2- at the left and right hinges -1-.
-- Adjust the height of the hood to the fenders -arrow A-.
-- Tighten the bolts -2-.
Tightening Specifications
- Refer to OVERVIEW - HOOD
