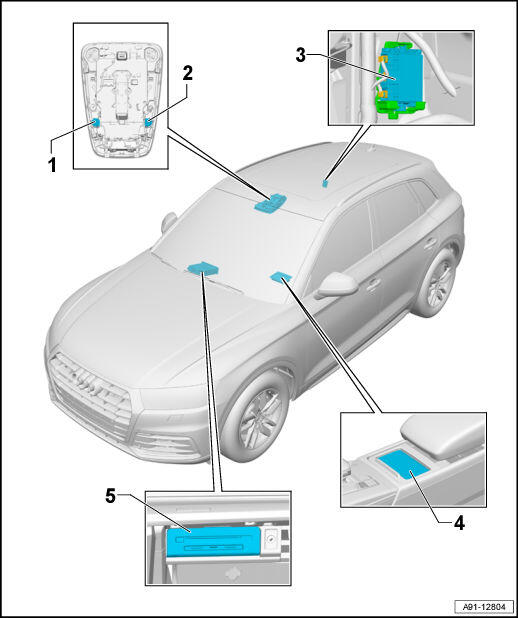

Component Location Overview - Telephone System, Before Product Improvement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Left Front Microphone -R140-
- Microphone unit overview. Refer to OVERVIEW - MICROPHONE UNIT, BEFORE PRODUCT IMPROVEMENT .
- Removing and Installing. Refer to Left Front Microphone -R140- /Right Front Microphone -R141-, REMOVING AND INSTALLING .
- Right Front Microphone -R141-
- Microphone unit overview. Refer to OVERVIEW - MICROPHONE UNIT, BEFORE PRODUCT IMPROVEMENT .
- Removing and Installing. Refer to Left Front Microphone -R140- /Right Front Microphone -R141-, REMOVING AND INSTALLING .
- Cellular Telephone Amplifier -R86-
- In the rear luggage compartment on the upper right side
- Removing and Installing. Refer to Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING .
- Telephone Baseplate -R126-
- In the Multimedia Device Storage Compartment in Center Console
- Removing and Installing. Refer to Telephone Baseplate -R126-, REMOVING AND INSTALLING .
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
