Effects Speaker, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the D-pillar trim panel. Refer to OVERVIEW - D-PILLAR TRIM PANEL .

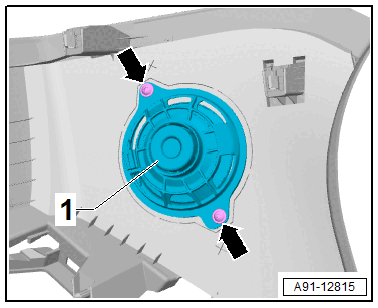

-- Release and disconnect the connector from the Left Effects Speaker -R209- -1-.
-- Remove the bolts -arrows-.
-- Remove the Left Effects Speaker -R209- -1- from the D-pillar trim panel.
