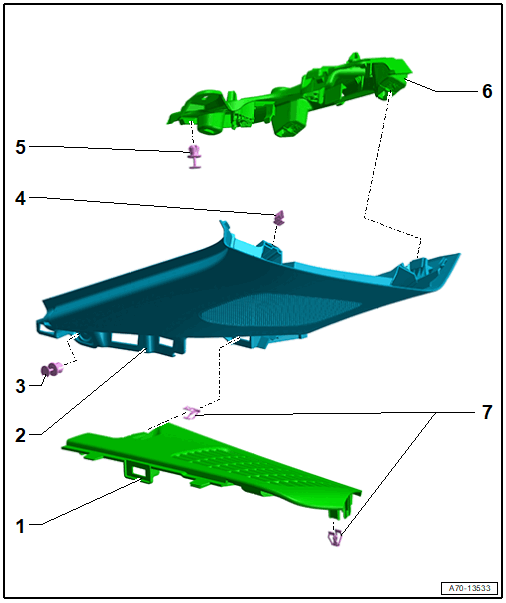

Overview - D-Pillar Trim Panel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Side Cover
- Refer to SIDE COVER, REMOVING AND INSTALLING
- D-Pillar Trim Panel
- Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING
- Stretch the lip of the rear lid seal over
- Expanding Rivet
- Removing with Pliers :T40172C
- Clips
- Quantity: 3
- Remove any remaining clips in the body mounting points using the Omega Clip Tool :T40280 . To install, insert into the trim panel.
- Replace damaged or deformed clips
- Expanding Rivet
- Quantity: 3
- Removing with Pliers :T40172C
- Bracket
- Clip
- Replace damaged or deformed clips
