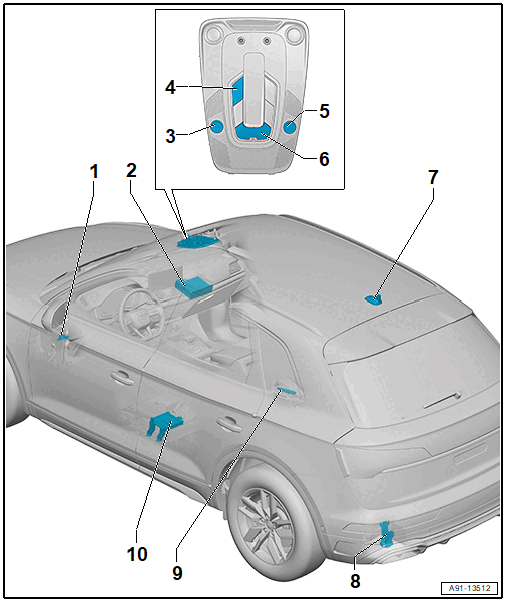

Component Location Overview - Mobile Online Services, From Product Improvement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Emergency Call Module Speaker -R335-
- On the driver side footwell cover
- Removing and Installing. Refer to Emergency Call Module Speaker -R335-, REMOVING AND INSTALLING .
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Right Front Microphone -R141-
- Removing and Installing. Refer to Left Front Microphone -R140- /Right Front Microphone -R141-, REMOVING AND INSTALLING .
- Roadside Assistance Button -E275-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Left Front Microphone -R140-
- Removing and Installing. Refer to Left Front Microphone -R140- /Right Front Microphone -R141-, REMOVING AND INSTALLING .
- Emergency Call Button -E276-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- GPS Antenna -R50- and Emergency Call Module Antenna 2 -R322-
- In the Roof Antenna -R216-
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Emergency Call Module Antenna -R263-
- Under the rear bumper cover on the left side
- Removing and Installing. Refer to BUMPER ANTENNAS, REMOVING AND INSTALLING .
- Emergency Call Module Antenna 3 -R323-
- On the left rear seat belt guide
- Removing and Installing. Refer to EMERGENCY CALL MODULE ANTENNA, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
- Control Module for Emergency Call Module and Communication Unit -J949-
- Under the left front seat
- Removing and Installing. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING .
- Telematics Emergency Battery -A16-, Checking. Refer to CONNECTIVITY BOX, CHECKING EMERGENCY BATTERY .
- Telematics Emergency Battery -A16-, Removing and Installing. Refer to Telematics Emergency Battery -A16-, REMOVING AND INSTALLING, WITH CONNECT PLUS (IV1 THROUGH IV9 OR JE0 THROUGH JE4), FROM PRODUCT IMPROVEMENT .
- Bracket nut tightening specification: 3.5 Nm
