Washer Nozzles, Adjusting

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

Adjust the spray nozzles for the windshield washer system. Refer to WINDSHIELD WASHER SYSTEM, CHECK SPRAY PATTERN AND ADJUSTING IF NECESSARY

-- Clean the dirty washer nozzle if the spray field does not match the specifications.

Washer Nozzle, Cleaning:

CAUTION:

There is a risk of damaging the washer nozzles through improper handling.

- Do not use any objects to clean the washer nozzles.

Washer Nozzle in Hood:

-- Remove the washer nozzle. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .

Washer Nozzle in Windshield Wiper Arm:

Courtesy of AUDI

-- Bring the windshield wiper into the service position. Refer to WINDSHIELD WIPER, BRINGING INTO SERVICE POSITION .

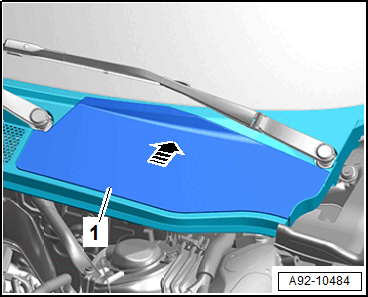

-- Slide the service cover -1- for the plenum chamber cover toward the rear -arrow- and remove it.

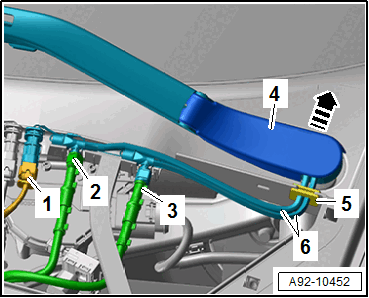

-- Release and disconnect the connector -1-.

Courtesy of AUDI

-- Release the retainers and disconnect the washer fluid hoses -2 and 3- at the connection points.

Continuation for all:

-- To remove any contaminants, the washer nozzle may only be blown out with compressed air in the opposite direction of the spray direction.

-- If the spray field still does not match the specifications, replace the washer nozzle.
