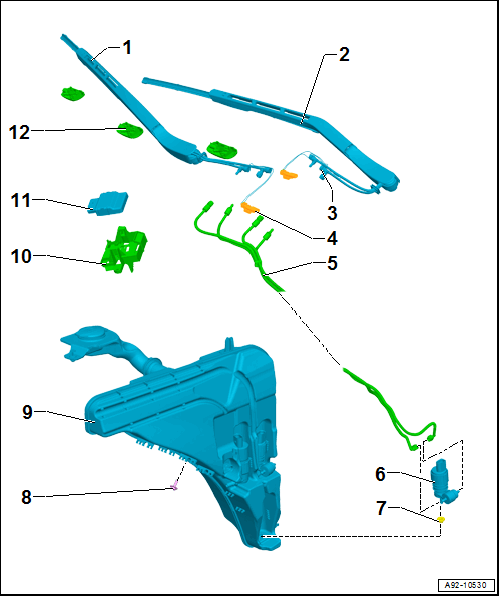

Overview - Windshield Washer System, Windshield Wipers With Integrated Washer Nozzles
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Right Washer Nozzle
- With Thermal Resistor 1 in Front Passenger Side Windshield Wiper Arm -Z141-
- Integrated in the windshield wiper arm and cannot be replaced separately if faulty
- Windshield Wiper Arm, Replacing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING, WINDSHIELD WIPERS WITH INTEGRATED WASHER NOZZLES .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
- Left Washer Nozzle
- With Thermal Resistor 1 in Driver Side Windshield Wiper Arm -Z139-
- Integrated in the windshield wiper arm and cannot be replaced separately if faulty
- Windshield Wiper Arm, Replacing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING, WINDSHIELD WIPERS WITH INTEGRATED WASHER NOZZLES .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
- Washer Fluid Hose
- To the washer nozzles in the windshield wiper arm
- Connector
- For heat resistances on the washer nozzles
- Washer Fluid Hose
- From the window washer pump
- Windshield Washer Pump -V5-
- The washer fluid hose connections depend on the equipment version.
- Removing and installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING .
- Grommet
- Replace if damaged
- Bolt
- 8 Nm
- Washer Fluid Reservoir
- For front/rear window washer system and headlamp washer system
- Removing and installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
- Bracket
- For Windshield Washer Pump Control Module -J1100-
- Windshield Washer Pump Control Module -J1100-
- Removing and installing. Refer to Windshield Washer Pump Control Module -J1100-, REMOVING AND INSTALLING .
- Blind Cover
- Quantity: 3
