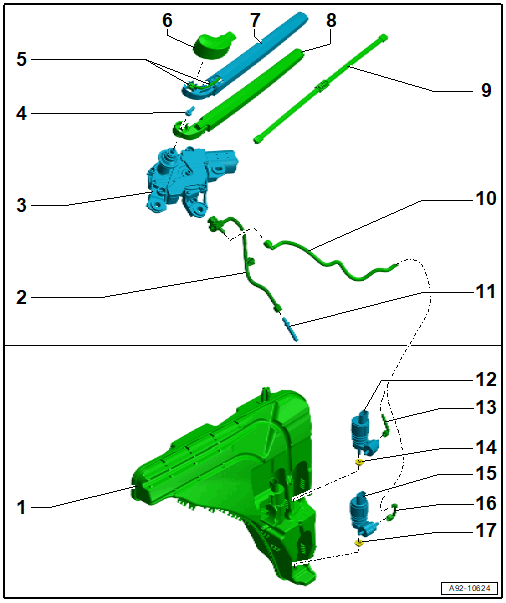

Overview - Rear Window Washer System
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Washer Fluid Reservoir
- Removing and installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
- Washer Fluid Hose
- To the rearview camera washer nozzle
- Rear Window Wiper Motor -V12-
- Washer Nozzle
- Removing and installing. Refer to WASHER NOZZLE, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLE, ADJUSTING .
- Spray Nozzle Connection for Windshield Wiper with Integrated Washer Nozzles
- With washer fluid hose and washer nozzle
- Cannot be replaced separately if faulty.
- Replacing. Refer to WINDSHIELD WIPER ARM, REMOVING AND INSTALLING .
- Rear Window Wiper Cap
- Windshield Wiper Arm with Integrated Washer Nozzles
- Windshield Wiper Arm
- Wiper Blade
- Washer Fluid Hose
- For rear window wiper washer nozzle
- Washer Nozzle
- for Rearview Camera -R189-
- For Rear Peripheral Camera -R246-
- Removing and installing. Refer to WASHER NOZZLE FOR Rearview Camera -R189- /Rear Peripheral Camera -R246-, REMOVING AND INSTALLING .
- Rear Window Washer Pump -V13-
- The washer fluid hose connections depend on the equipment version.
- Removing and installing. Refer to REAR WINDOW WASHER PUMP, REMOVING AND INSTALLING .
- Washer Fluid Hose
- From the Rear Window Washer Pump -V13-
- Grommet
- Replace if damaged
- Windshield Washer Pump -V5-
- The washer fluid hose connections depend on the equipment version.
- Removing and installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING .
- Washer Fluid Hose
- From the Windshield Washer Pump -V5-
- Grommet
- Replace if damaged
