Washer Nozzle, Adjusting

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

-- Adjust the spray nozzles for the rear window washer system. Refer to WINDSHIELD WASHER SYSTEM, CHECK SPRAY PATTERN AND ADJUSTING IF NECESSARY

-- Clean the dirty washer nozzle if the spray field does not match the specifications.

Washer Nozzle, Cleaning:

CAUTION:

There is a risk of damaging the washer nozzles through improper handling.

- Do not use any objects to clean the washer nozzles.

Windshield wiper axle washer nozzle:

-- Remove the washer nozzle. Refer to WASHER NOZZLE, REMOVING AND INSTALLING .

Washer Nozzle in Windshield Wiper Arm:

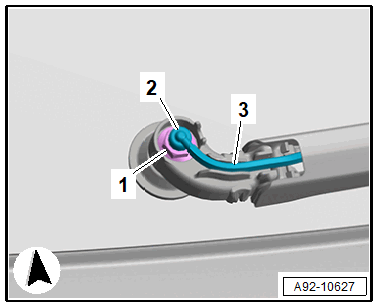

Fig 1: Identifying Cover

Courtesy of AUDI

-- Carefully expand the cap -arrows- and lift off.

-- Carefully remove the washer nozzle -2- and remove the washer fluid hose -3- from the guide.

Courtesy of AUDI

Continuation for all:

-- Rinse the washer nozzle with clean water opposite the spray direction.

-- To remove any remaining contaminants, the washer nozzle may only be blown out with compressed air in the opposite direction of the spray direction.

-- If the spray field still does not correspond to the specifications, replace the washer nozzle.
