Wheel Bearing Unit, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with active suspension: pay attention to the safety precautions. Refer to SAFETY PRECAUTIONS WHEN WORKING ON VEHICLES WITH ACTIVE SUSPENSION .

-- Loosen the connection between the drive axle and wheel hub. Refer to DRIVE AXLE THREADED CONNECTION, LOOSENING AND TIGHTENING .

-- Remove the brake rotor. Refer to BRAKE ROTOR, REMOVING AND INSTALLING (4M) , BRAKE ROTOR, REMOVING AND INSTALLING (4MN) .

CAUTION:

Risk of damaging the wheel bearing housing by deforming it.

- Do not widen the slots in the wheel bearing housing.

-- Disconnect the threaded connection -1-.

Fig 1: Identifying Upper Control Arms And Bolts

Courtesy of AUDI

-- Remove the joint pins in the upper control arm -2- from the wheel bearing housing.

-- Remove the bolts -arrows-.

Courtesy of AUDI

-- Remove the wheel hub -2- with the wheel bearing unit from the drive axle -3- and remove it from the wheel bearing housing -1-.

CAUTION:

Contamination increases the risk of destroying the wheel bearing.

- Protect the contact surfaces on the wheel bearing from dirt.

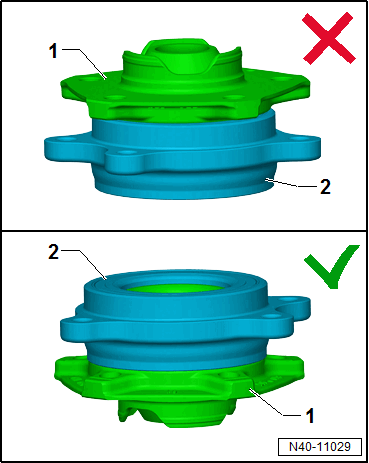

The wheel bearing -2- must always face up in order to remove the wheel bearing unit.

Fig 2: Wheel Bearing, Handling
Courtesy of AUDI
Always set the wheel bearing unit down on the wheel hub -1-.
Never reach inside when lifting the wheel bearing.

Courtesy of AUDI
Hold the wheel bearing only on the outside.
