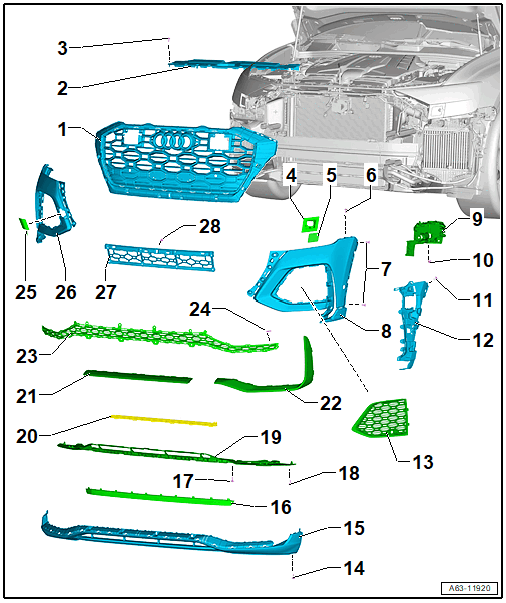

Overview - Bumper Cover, RS Q8
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Radiator Grille
- Overview. Refer to OVERVIEW - RADIATOR GRILLE .
- Lock Carrier Cover
- Removing and Installing. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING, RS Q8 .
- Expanding Rivet
- Quantity: 11
- Frame
- For the headlamp washer system washer nozzle
- Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE FRAME, REMOVING AND INSTALLING .
- Cover
- For the headlamp washer system washer nozzle
- Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING .
- Pop Rivet
- Quantity: 2
- Bolt
- Quantity: 3
- 2.5 Nm
- Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Bumper cover side piece
- Removing and Installing. Refer to BUMPER COVER SIDE PIECE, REMOVING AND INSTALLING .
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Mount
- For the bumper cover
- To secure the headlamp
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Nut
- Quantity: 5
- 4 Nm
- Bolt
- For side end panel
- Quantity: 3
- 2.5 Nm
- End Panel
- Side
- Removing and Installing. Refer to BUMPER COVER SIDE END PANEL, REMOVING AND INSTALLING .
- Air Intake Grille
- Side
- Removing and Installing. Refer to SIDE AIR INTAKE GRILLE, REMOVING AND INSTALLING, RS Q8 .
- Bolt
- Quantity: 12
- 2.5 Nm
- Spoiler
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER SPOILER, REMOVING AND INSTALLING .
- Spoiler
- For the end plate
- Removing and Installing. Refer to END PANEL SPOILER, REMOVING AND INSTALLING .
- Bolt
- Quantity: 5
- 4.5 Nm
- Bolt
- Quantity: 10
- 2.5 Nm
- End Panel
- Center
- Removing and Installing. Refer to BUMPER COVER CENTER END PANEL, REMOVING AND INSTALLING, RS Q8 .
- Seal
- Clipped onto the center of the end panel
- Front Spoiler
- Center
- Removing and Installing. Refer to CENTER FRONT SPOILER, REMOVING AND INSTALLING, RS Q8 .
- Front Spoiler
- Side
- Removing and Installing. Refer to SIDE FRONT SPOILER, REMOVING AND INSTALLING, RS Q8 .
- Grille
- Center
- Removing and Installing. Refer to CENTER GRILLE, REMOVING AND INSTALLING .
- Clip
- Quantity: 2
- Cover
- For the towing eye
- Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Bumper cover side piece
- Removing and Installing. Refer to BUMPER COVER SIDE PIECE, REMOVING AND INSTALLING .
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Grille
- For the radiator grille
- Removing and Installing. Refer to RADIATOR GRILLE, GRILLE, REMOVING AND INSTALLING .
- Bolt
- Quantity: 12
- 2.5 Nm
