Overview - Bumper Cover, Q8

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

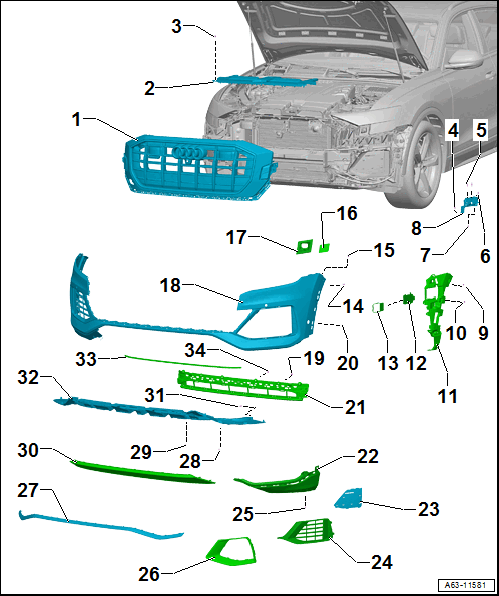

Fig 1: Exploded View Of Front Bumper Cover

Courtesy of AUDI

Radiator Grille
- Overview. Refer to OVERVIEW - RADIATOR GRILLE .
Lock Carrier Cover
- Removing and Installing. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .
Expanding Rivet
- Quantity: 5
Spring Nut
- Quantity: 2
Double Bolt
- Quantity: 3
- 10 Nm
Bolt
- Quantity: 2
- 2.5 Nm
Nut
- Quantity: 5
- 4 Nm
Mount
- For the bumper cover
- To secure the headlamp
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
Clip Nut
- Quantity: 5
Bolt
- For side end panel
- Quantity: 3
- 2 Nm
End Panel
- Side
- Removing and Installing. Refer to BUMPER COVER SIDE END PANEL, REMOVING AND INSTALLING .
Control Module
- Control Module for Left Front Object Detection Radar Sensor -J1088-, Control Module for Right Front Object Detection Radar Sensor -J1089-
- Removing and Installing. Refer to CONTROL MODULE FOR LEFT FRONT OBJECT DETECTION RADAR SENSOR -J1088- /CONTROL MODULE FOR RIGHT FRONT OBJECT DETECTION RADAR SENSOR -J1089-, REMOVING AND INSTALLING
Shield
- For Control Module for Left Front Object Detection Radar Sensor -J1088-, Control Module for Right Front Object Detection Radar Sensor -J1089-
- Removing and Installing. Refer to CONTROL MODULE FOR LEFT FRONT OBJECT DETECTION RADAR SENSOR -J1088- /CONTROL MODULE FOR RIGHT FRONT OBJECT DETECTION RADAR SENSOR -J1089-, REMOVING AND INSTALLING
Bolt
- 2.5 Nm
Pop Rivet
- Quantity: 2
Cover
- For the headlamp washer system washer nozzle
- Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING .
Frame
- For the headlamp washer system washer nozzle
- Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE FRAME, REMOVING AND INSTALLING .
Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Pop Rivet
- For center air intake grille
- Quantity: 4
Bolt
- For side end panel
- Quantity: 2
- 2.5 Nm
Air Intake Grille
- Center
- Removing and Installing. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING .
Front Spoiler
- Side
- Removing and Installing. Refer to FRONT SPOILER, REMOVING AND INSTALLING .
Trim
- For the air intake grille
- Removing and Installing. Refer to FRONT BUMPER SIDE AIR INTAKE GRILLE, REMOVING AND INSTALLING .
Air Intake Grille
- Side
- Removing and Installing. Refer to SIDE AIR INTAKE GRILLE, REMOVING AND INSTALLING, Q8 .
Bolt
- Quantity: 6
- 2.5 Nm
Trim Molding
- Side
- Removing and Installing. Refer to SIDE TRIM MOLDING, REMOVING AND INSTALLING .
Trim Molding
- For protective molding
- Removing and Installing. Refer to TRIM MOLDING FOR PROTECTIVE MOLDING, REMOVING AND INSTALLING .
Bolt
- Quantity: 4
- 2.5 Nm
Bolt
- Quantity: 2
- 4.5 Nm
Impact Guard
- Removing and Installing. Refer to IMPACT GUARD, REMOVING AND INSTALLING .
Locking Nut
- Quantity: 2
End Panel
- Center
- Removing and Installing. Refer to BUMPER COVER CENTER END PANEL, REMOVING AND INSTALLING .
Trim Molding
- Center
- Removing and Installing. Refer to CENTER TRIM MOLDING, REMOVING AND INSTALLING .
Bolt
- Quantity: 6
- 2.5 Nm
