Bumper Cover, Adjusting
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Adjustment dimensions. Refer to ADJUSTMENT DIMENSIONS .
Procedure

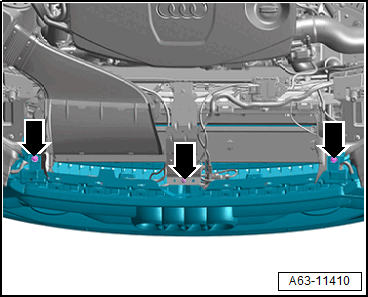

-- Loosen the bolts -arrows-.

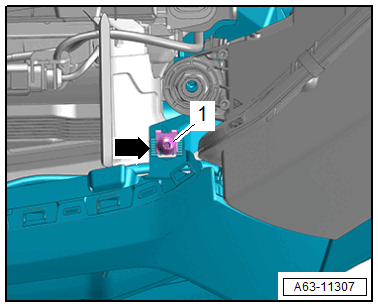

-- Adjust the bumper cover at the bolts -1- lengthwise according to the markings -arrow-.
-- Tighten the bolts.
-- Check the gap dimension for evenness, and repeat the adjustment if necessary.
Tightening Specifications
- Refer to OVERVIEW - RADIATOR GRILLE
