Era-GLONASS: Emergency Call Function, Checking (Not For NAR)

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

Requirements:

Applies to vehicles with ERA-GLONASS emergency call function (depending on market requirements).
Services are only possible within the coverage of the mobile network.
Test mode can only be started within the first 20 seconds after switching on the ignition.
Transport mode deactivated.
It may take up to 15 minutes between the deactivating transport mode and checking the emergency call function, depending on the system.
Make sure there is a suitable cell phone connection: park the vehicle outdoors, if necessary.

Procedure:

-- Switch the ignition on.

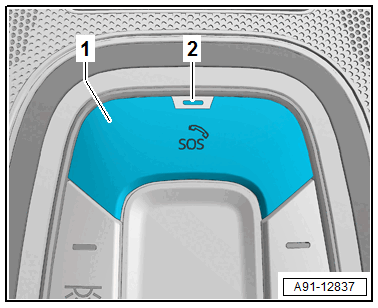

-- Check if the LED -2- is green.

Courtesy of AUDI OF AMERICA, LLC

-- Perform ERA-GLONASS test mode:

-- Press the emergency call button behind the cover in the roof module -1- ten times consecutively and follow the announcements from the voice prompt for performing the test procedure and test call.

NOTE:

If the LED is red or the test mode is not possible, then connect the Vehicle Diagnostic Tester (refer to VEHICLE DIAGNOSTIC TESTER, CONNECTING ), and perform Guided Fault Finding "19 - Data Bus on Board Diagnostic Interface, Functions, ERA-GLONASS Operation".

Due to the country-specific regulations do not deliver the vehicle without successful activation of the ERA-GLONASS: emergency call function (red LED).

When running the Full pre-delivery inspection program, the test program is automatically loaded into the test plan.
