Vehicle Diagnostic Tester, Connecting
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Risk of injury due to unintended engine start on high-voltage vehicles!
- Pay attention to the high-voltage system warning messages:
- For procedures where the ignition must be switched off, refer to PROCEDURES THAT NEED IGNITION SWITCHED ON .
Special tools and workshop equipment required
- Vehicle Diagnostic Tester
- Diagnostic Interface :VAS 6154A
Procedure:

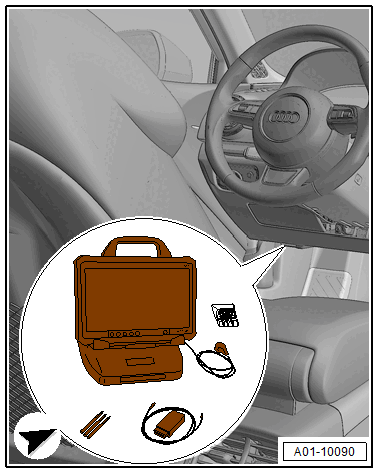

-- Attach the connector of the Vehicle Diagnostic Tester :VAS 6160 A to the diagnostic connection in the vehicle.
-- Turn on the Vehicle Diagnostic Tester.
-- Switch the ignition on.
-- Follow the screen menu to start the desired function.
