Transmission Fluid Pan, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
NOTE:
When installing use the complete repair kit.

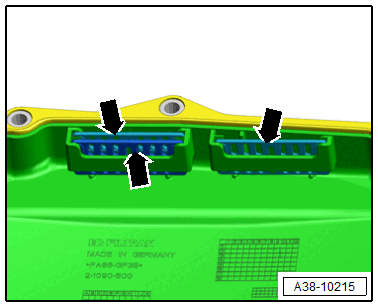

-- Clean the magnets -arrows-.
-- Thoroughly clean the sealing surface.
-- Install the bolts -1 and 2- by hand until the bolt heads make contact.

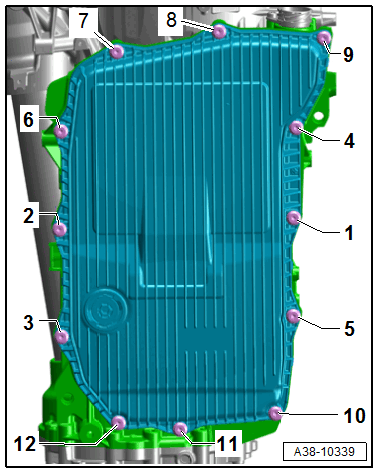

-- Tighten the bolts in the specified tightening sequence. Refer to OVERVIEW - MECHATRONIC

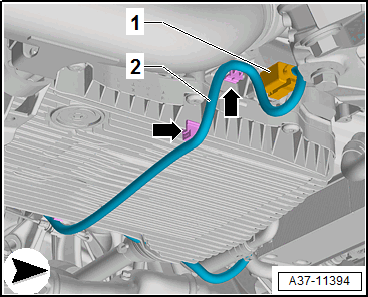

-- If equipped, connect the right connector on the transmission -1-.
-- Clip in the wiring harness -2- -arrows-.
-- Fill with ATF. Refer to ATF, DRAINING AND FILLING .
