Overview - Rear Door Trim Panel

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

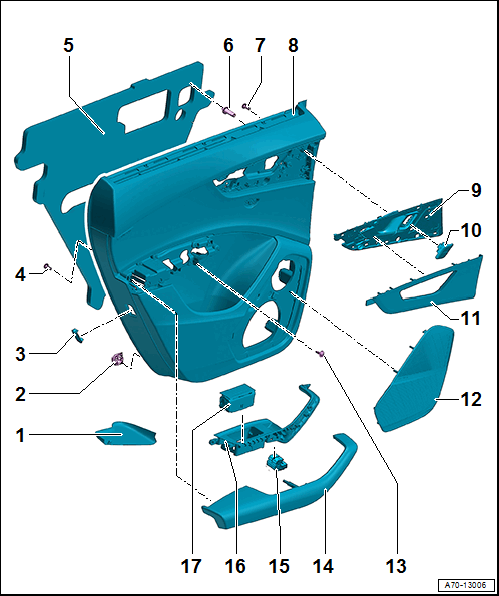

Fig 1: Exploded View Of Rear Door Trim Panel

Courtesy of AUDI

Inlay Mat
Clip
- Quantity: 8
- Insert in the trim panel
Door Warning Reflector
- Refer to COMPONENT LOCATION OVERVIEW - REAR DOOR LAMPS .
Bolt
- 1.5 Nm
- Quantity: 12
Insulation Mat
Door Trim Panel Stopper
- 5 Nm
Bolt
- 1.5 Nm
- Quantity: 13
Door Trim Panel
- Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING
Interior Door Mechanism
- Refer to INTERIOR DOOR MECHANISM, REMOVING AND INSTALLING
Control Head in Driver Side Rear Door -EX61-
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN REAR DOORS .
Decorative Trim
- Refer to DECORATIVE TRIM, REMOVING AND INSTALLING
Trim
- For midrange speaker
- Refer to MIDRANGE SPEAKER TRIM, REMOVING AND INSTALLING
Bolt
- 4.5 Nm
- Quantity: 3
Pull Handle with Armrest
- Refer to REAR PULL HANDLE, REMOVING AND INSTALLING
Left Rear Interior Locking Switch -E273-
- Refer to the appropriate Service Information .
Switch Mount
- Refer to REAR PULL HANDLE, REMOVING AND INSTALLING
Rear Ashtray
- Refer to REAR ASHTRAY, REMOVING AND INSTALLING
