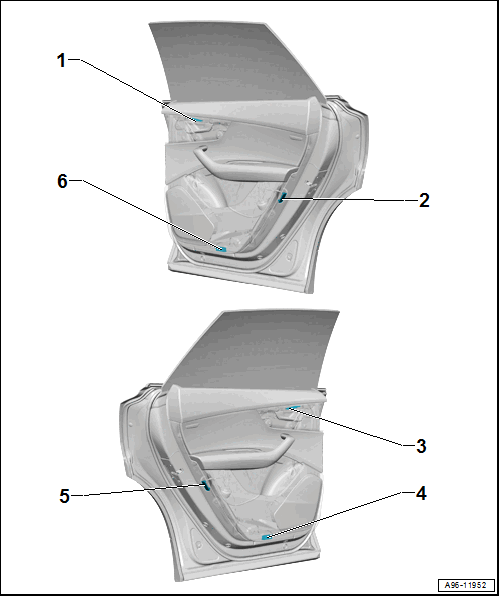

Component Location Overview - Rear Door Lamps
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.
- Passenger Side Rear Interior Door Handle Illumination Bulb -L222-
- Removing and installing. Refer to REAR INTERIOR DOOR HANDLE ILLUMINATION LAMP, REMOVING AND INSTALLING .
- Front Passenger Side Rear Door Warning Reflector
- Driver Side Rear Interior Door Handle Illumination Bulb -L221-
- Removing and installing. Refer to REAR INTERIOR DOOR HANDLE ILLUMINATION LAMP, REMOVING AND INSTALLING .
- Driver Side Rear Entry Lamp -W83-
- Removing and installing. Refer to DRIVER AND PASSENGER SIDE REAR ENTRY LAMP -W83- / -W84-, REMOVING AND INSTALLING .
- Driver Side Rear Door Warning Reflector
- Passenger Side Rear Entry Lamp -W84-
- Removing and installing. Refer to DRIVER AND PASSENGER SIDE REAR ENTRY LAMP -W83- / -W84-, REMOVING AND INSTALLING .
