Front Door Trim Panel, Removing And Installing: Installing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
- Before installing, check all the fasteners for damage and replace if necessary.
-- Position the door trim on the window recess and press it down firmly.

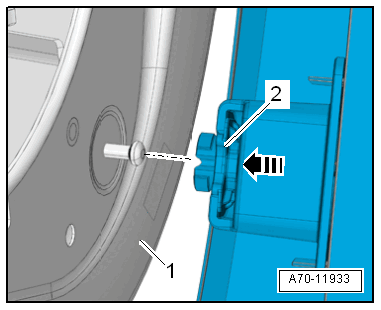

-- Carefully position the door trim panel clips -2- all around the door -1- and press the door trim panel onto the door until it engages audibly on the mounting points in the direction of -arrow-. Refer to Removing .

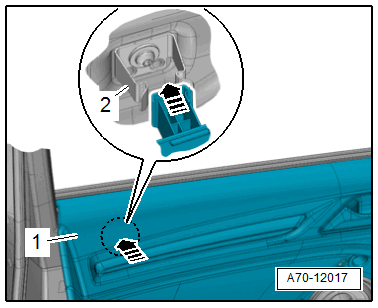

-- Engage the door trim panel -1- in the clip -2- by pushing the door trim panel on the door at the indicated point in direction of -arrows-.
