Overview - Electric Drive Motor

WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

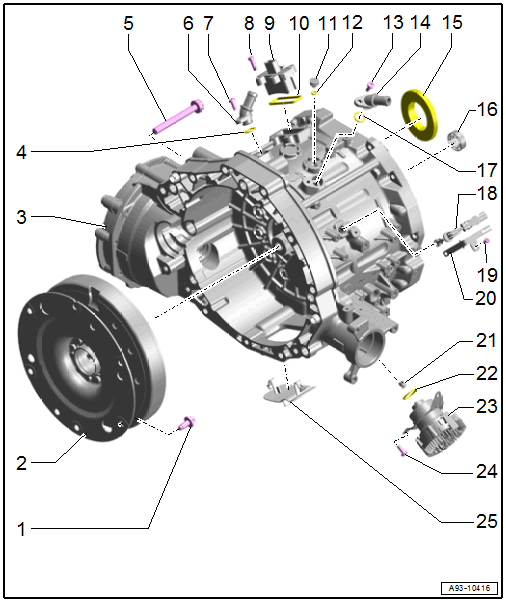

Fig 1: Exploded View Of Electric Drive Motor

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 62 Nm
- Replace after removing
- Procedure when tightening. Refer to TRANSMISSION, INSTALLING .
- Quantity: 6
Torsion Dampers
- Removing and Installing. Refer to TORSION DAMPER, REMOVING AND INSTALLING .
Three-Phase Current Drive -VX54-
- With front final drive
- Removing and Installing. Refer to Three-Phase Current Drive -VX54-, REMOVING AND INSTALLING .

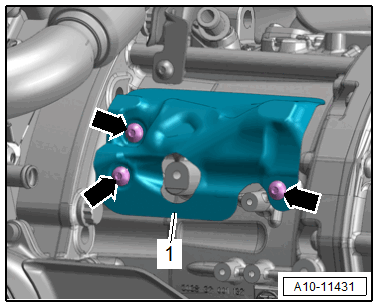

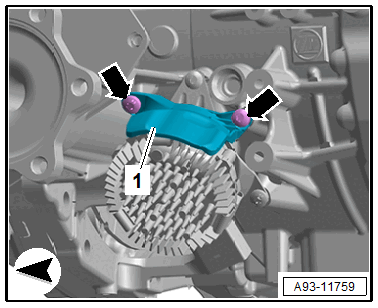

- Heat shield tightening specifications. Refer to Fig 5 and Refer to Fig 6.
O-Ring
- Replace after removing
Bolt
- Tightening specifications. Refer to TRANSMISSION TIGHTENING SPECIFICATIONS .
Coolant Connection
- Removing and Installing. Refer to COOLANT CONNECTION, REMOVING AND INSTALLING .
Bolt
- 6 Nm
Bolt

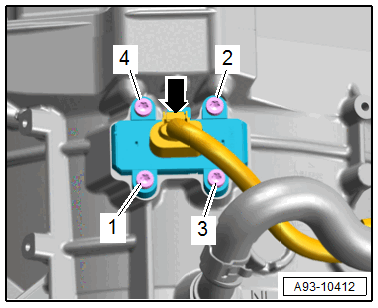

- Tightening specification Refer to Fig 4.
Drive Motor Rotor Position Sensor 1 -G713-
- Removing and Installing. Refer to Drive Motor Rotor Position Sensor 1 -G713-, REMOVING AND INSTALLING: .
Seal
- Replace after removing
Vent Plug
O-Ring
- Replace after removing
Bolt
- 6 Nm
Coolant Connection
- Removing and Installing. Refer to COOLANT CONNECTION, REMOVING AND INSTALLING .
Seal
- For the protective pipe
Centering Bracket
- Removing and Installing. Refer to CENTERING BRACKET, REMOVING AND INSTALLING .
O-Ring
- Replace after removing
Drive Motor Temperature Sensor -G712-
- Removing and Installing. Refer to Drive Motor Temperature Sensor -G712-, REMOVING AND INSTALLING .
Bolt
- 6.5 Nm
- Quantity: 2
Retaining Plate
Driver
O-Ring
- Replace after removing
Decoupler Actuator -V606-

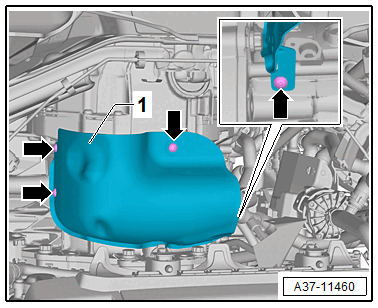

- Version with heat shield. Refer to Fig 3.
- Removing and Installing. Refer to Decoupler Actuator -V606-, REMOVING AND INSTALLING .
Bolt

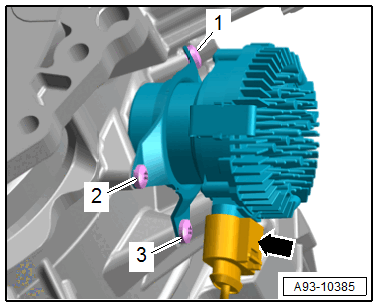

- Tightening specification Refer to Fig 2.
Cover
