Centering Bracket, Removing And Installing
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
Procedure
- The transmission is removed. Refer to TRANSMISSION, REMOVING .

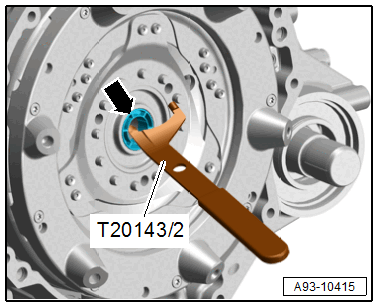

-- Pry out the centering bracket -arrow- using the Puller - Crankshaft/Power Steering Seal:T20143/2 .
-- Clean the seat surface for the centering bracket.

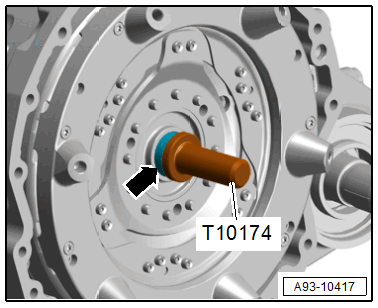

-- Press in the centering bracket flush -arrow- using the Seal Installer - Selector Shaft Oil Seal:T10174 .
