Ignition Coils, Removing And Installing, Cylinder Bank 1 (Right): Removing

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

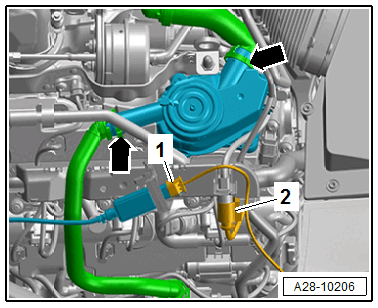

-- Remove, disconnect and free up the connectors from the bracket (example image):

Courtesy of AUDI OF AMERICA, LLC

1. For the Exhaust Gas Temperature Sensor 3 -G495- on vehicle with particulate filter
2. For Oxygen Sensor 2 Before Catalytic Converter -GX11-

-- Push the release buttons on both sides and remove the hoses -arrows- for the crankcase ventilation from the oil separator.

-- Remove the reinforcement brace. Refer to OVERVIEW - LOCK CARRIER .

-- Remove the engine bracket upper section for the driving dynamic support. Refer to DRIVING DYNAMIC SUPPORT ENGINE BRACKET, REMOVING AND INSTALLING .

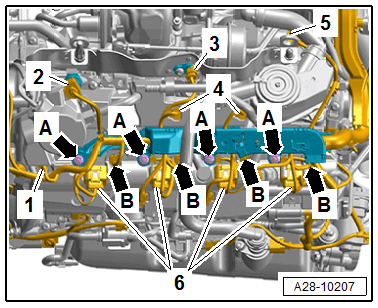

-- Remove the nuts -A arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors and free up the wires.

1. For the Fuel Metering Valve -N290-
2. For the Low Fuel Pressure Sensor -G410-
3. For the Engine Cover Temperature Sensor -G765-
4. For the Cylinder 2 Exhaust Cam Actuator 1 -F454- / Cylinder 3 Exhaust Cam Actuator 1 -F458-
5. For the Recirculation Valve, Bank 1 -N625-
6. For the ignition coils

-B arrows- for the fuel injectors

-- Push the wiring harness with wiring duct to the right side.

All additional procedures are described under: IGNITION SYSTEM .
