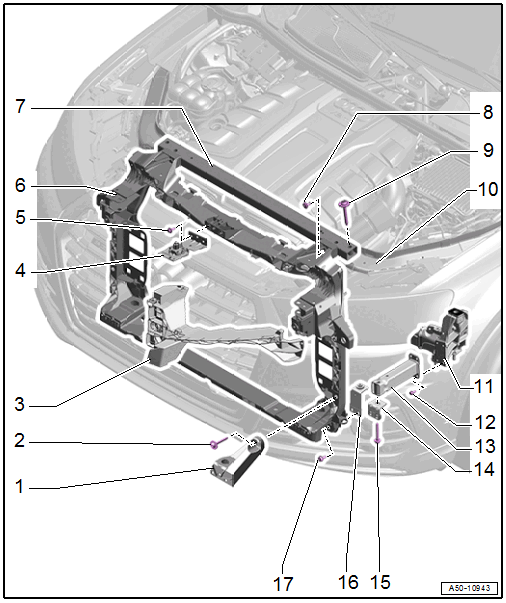

Overview - Lock Carrier
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Radiator Mount
- Only for 8-cylinder TDI engine
- Bolt
- 8 Nm
- Mount
- For headlamp
- Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING .
- Mounting Bracket with Release Cable
- For the hook release lever
- Overview. Refer to OVERVIEW - RELEASE CABLE .
- Bolt
- Quantity: 2
- Tightening specification Refer to OVERVIEW - RELEASE CABLE .
- Lock Carrier
- Removing and Installing. Refer to LOCK CARRIER, REMOVING AND INSTALLING .
- Reinforcement Brace
- Removing and Installing. Refer to REINFORCEMENT BRACE, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Bolt
- Quantity: 2
- 10 Nm
- Body
- Subframe
- Bolt
- Quantity: 4
- 10 Nm
- Lower Longitudinal Member
- Removing and Installing. Refer to LOWER LONGITUDINAL MEMBER, REMOVING AND INSTALLING .
- Bracket
- For the lower longitudinal member
- Removing and Installing. Refer to LOWER LONGITUDINAL MEMBER BRACKET, REMOVING AND INSTALLING .
- Bolt
- 25 Nm
- Bracket
- For the lower longitudinal member
- Removing and Installing. Refer to LOWER LONGITUDINAL MEMBER BRACKET, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 23 Nm
