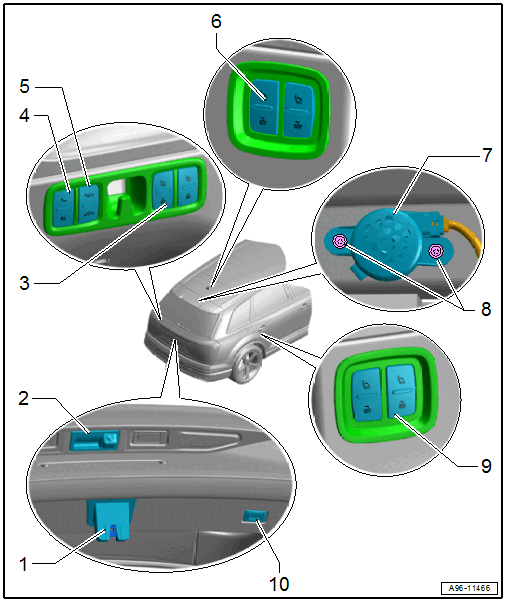

Component Location Overview - Controls In Luggage Compartment

Courtesy of AUDI

1. Rear Lid Contact Switch
   • Removing and Installing. Refer to REAR LID CONTACT SWITCH, REMOVING AND INSTALLING .
2. Release Button In Rear Lid Handle -E234-
   • Removing and Installing. Refer to Release Button in Rear Lid Handle -E234-, REMOVING AND INSTALLING, BEFORE PRODUCT IMPROVEMENT .
   • Removing and Installing. Refer to Release Button in Rear Lid Handle -E234-, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
3. Third Row Backrest Adjustment Button - in Luggage Compartment
   • Left Third Row Button 3 for Backrest Adjustment -E802-, Right Third Row Button 3 for Backrest Adjustment -E805-
   • Removing and Installing. Refer to Left Third Row Button 3 for Backrest Adjustment - E802- /Right Third Row Button 3 for Backrest Adjustment - E805-, REMOVING AND INSTALLING, LUGGAGE COMPARTMENT .
4. Power Pivoting Trailer Hitch Button -E474-
   • Removing and Installing. Refer to Loading Sill Lowering Control Head -E682- /Power Pivoting Trailer Hitch Button -E474-, REMOVING AND INSTALLING .
5. Loading Sill Lowering Control Head -E682-
   • With Load Level Button -E539-
   • Removing and Installing. Refer to Loading Sill Lowering Control Head -E682- /Power Pivoting Trailer Hitch Button -E474-, REMOVING AND INSTALLING .
6. Third Row Backrest Adjustment Button - Left Rear Door
   • Left Third Row Seat Backrest Adjustment Button -E565-, Right Third Row Seat Backrest Adjustment Button -E549-
   • Removing and Installing. Refer to Left Third Row Seat Backrest Adjustment Button -E565- /Right Third Row Seat Backrest Adjustment Button - E549-, REMOVING AND INSTALLING, LEFT REAR DOOR .
7. Rear Lid Warning Buzzer -H32-
   • The buzzer is activated by closing the rear lid using the rear lid remote release button in the front door
   • Removing and Installing. Refer to Rear Lid Warning Buzzer -H32-, REMOVING AND INSTALLING .
8. Expanding Clip
9. Third Row Backrest Adjustment Button - Right Rear Door
   • Left Third Row Button 2 for Backrest Adjustment -E801-, Right Third Row Button 2 for Backrest Adjustment -E804-
   • Removing and Installing. Refer to Left Third Row Button 2 for Backrest Adjustment - E801- /Right Third Row Button 2 for Backrest Adjustment - E804-, REMOVING AND INSTALLING, RIGHT REAR DOOR .
10. Rear Lid Lock Button in Luggage Compartment -E406-
    • Depending on vehicle equipment with Locking Mechanism Button in the Rear Lid -E806-.
    • Removing and Installing. Refer to Rear Lid Lock Button in Luggage Compartment -E406-, REMOVING AND INSTALLING .

Tightening Specification for Third Row Backrest Adjustment Button - in Luggage Compartment

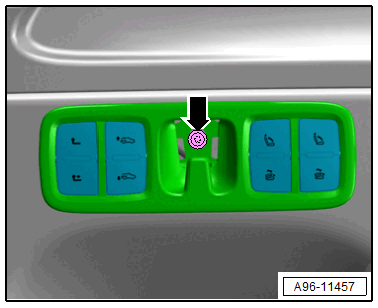

Fig 1: Third Row Button for Backrest Adjustment - in Luggage Compartment

Courtesy of AUDI

-- Tighten the bolt -arrow- to 3 Nm.

Anti-Theft Protection to Release Button In Rear Lid HandleE234 - Tightening Specification

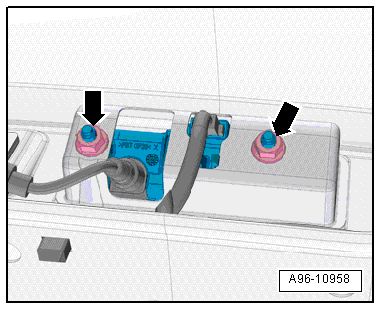

Fig 2: Identifying Anti-Theft Protection To Rear Lid Lock Cylinder Unlock Button -F248-

Courtesy of AUDI

-- Tighten the nuts -arrows- to 6 Nm.
