Rear Lid Contact Switch, Removing And Installing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

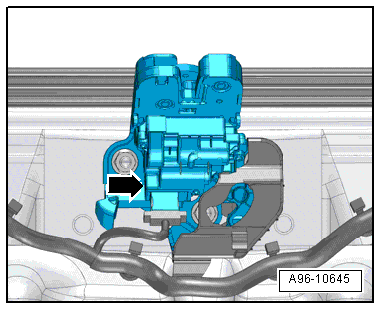

Fig 1: Identifiyng Rear Lid Contact Switch
GWWA96-10645Courtesy of AUDI

The rear lid contact switch -arrow- is located in the rear lid latch and cannot be replaced separately if faulty.

-- Replace the rear lid latch. Refer to LATCH, REMOVING AND INSTALLING .
