Engine Speed Sensor -G28-, REMOVING AND INSTALLING
WARNING: This page is about a different car, the 2022 Audi Q8, 2021 Audi Q8, 2020 Audi Q8, and 2019 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear noise insulation. Refer to OVERVIEW - NOISE INSULATION .

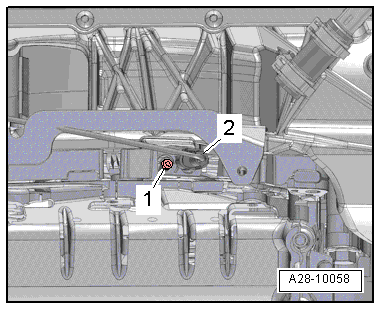

-- Disconnect the connector -2-.
-- Remove the bolt -1- and the Engine Speed Sensor -G28-.
Installing
Install in reverse order of removal and note the following:
- Replace the O-rings after removing them.
Tightening Specifications
- Refer to OVERVIEW - IGNITION SYSTEM
- Refer to OVERVIEW - NOISE INSULATION .
