Camshaft Position Sensor, Removing And Installing

WARNING: This page is about a different car, the 2022 Audi Q8, 2021 Audi Q8, 2020 Audi Q8, and 2019 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Bit Torx T30: T10573

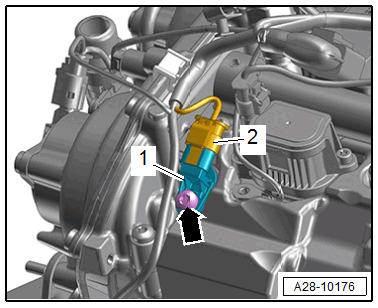

Camshaft Position Sensor -G40- /Camshaft Position Sensor 2 -G163- Removing (Intake Camshaft)

Courtesy of AUDI OF AMERICA, LLC

Camshaft Position Sensor -G40- : depending on the model, preliminary work may be required. Refer to CAMSHAFT POSITION SENSOR, REMOVING AND INSTALLING .

-- Camshaft Position Sensor 2 -G163- : remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Push the upper section of the noise insulation slightly upward as shown.

-- Disconnect the connector -2-.

-- Remove the bolt -arrow- and remove the camshaft position sensor -1-. (Shown on Camshaft Position Sensor -G40-.)

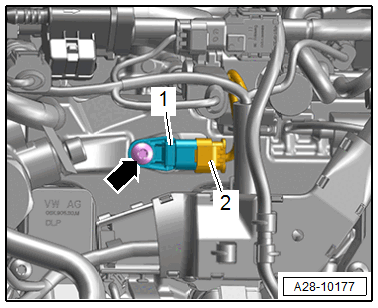

Remove the Camshaft Position Sensor 3 -G300- (Exhaust Camshaft Cylinder Bank 1)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the right high pressure pipe. Refer to REMOVE THE RIGHT HIGH PRESSURE PIPE .

-- Disconnect the connector -2-.

-- Remove the bolt -arrow- and remove the camshaft position sensor -1-.

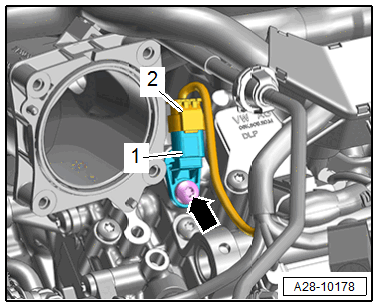

Camshaft Position Sensor 4 -G301- Version 1, Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Throttle Valve Control Module -GX3-. Refer to Throttle Valve Control Module -GX3-, REMOVING AND INSTALLING .

-- Push the upper section of the noise insulation slightly upward as shown.

-- Disconnect the connector -2-.

-- Remove the bolt -arrow- and remove the camshaft position sensor -1-.

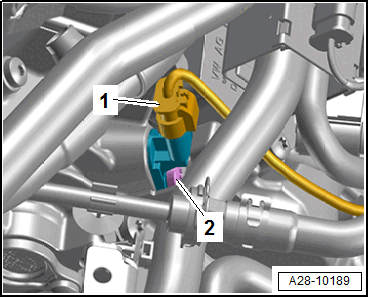

Camshaft Position Sensor 4 -G301- Version 2, Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Disconnect the connector -1-.

-- Remove the bolt -2- and remove the camshaft position sensor.

Installing

Install in reverse order of removal and note the following:

Replace the O-rings after removing them.

-- Install the Throttle Valve Control Module -GX3-. Refer to Throttle Valve Control Module -GX3-, REMOVING AND INSTALLING .

-- Install the high pressure pipe. Refer to HIGH PRESSURE PIPE, REMOVING AND INSTALLING .

-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

There may be additional procedures depending on the model. Refer to CAMSHAFT POSITION SENSOR, REMOVING AND INSTALLING .

Tightening Specifications

Refer to OVERVIEW - IGNITION SYSTEM
