Engine Cover, Removing And Installing

WARNING: This page is about a different car, the 2022 Audi Q8, 2021 Audi Q8, 2020 Audi Q8, and 2019 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

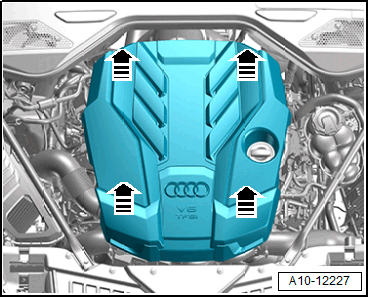

Engine Cover Removing: Version 1

-- Carefully pull the engine cover off the retaining pins one after the other in direction of -arrows-. Do not pull sharply on the engine cover or pull it to one side.

Courtesy of AUDI OF AMERICA, LLC

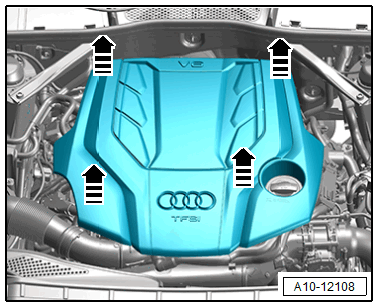

Engine Cover Removing: Version 2

Courtesy of AUDI OF AMERICA, LLC

-- Carefully pull the engine cover off the retaining pins one after the other -arrows-. Do not pull sharply on the engine cover or pull it to one side.

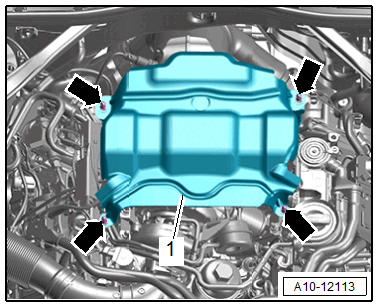

Remove the Heat Shield.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the ball pins and bolts -arrows- and then remove the heat shield -1-.

Installing

CAUTION:

Fire hazard and risk of damage due to a missing heat shield/engine cover.

- Never close the hood if the heat shield and engine cover are not installed.

- Never start the engine or move the vehicle if the heat shield/engine cover are missing and the hood is closed.

-- To prevent damage to the engine cover, do not hit it with a fist or a tool.

-- Position the engine cover while paying attention to the oil filler tube and oil dipstick.

-- Press the engine cover into the rubber grommets on the left side first, then into the ones on the right side.

Tightening Specifications

Refer to OVERVIEW - CYLINDER HEAD
