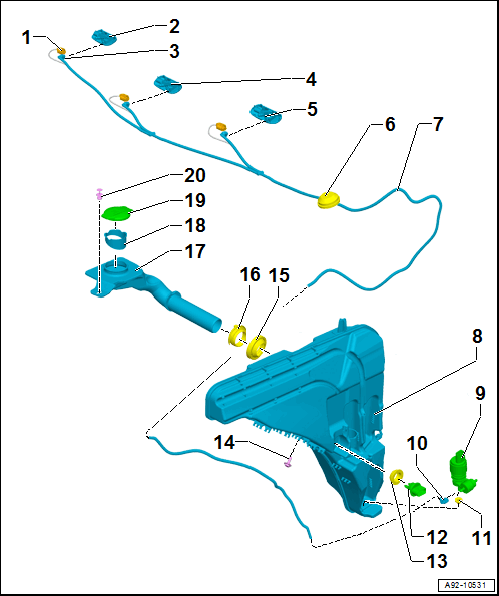

Overview - Windshield Washer System, From Product Improvement
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Connector
- Depends on equipment
- For heat resistances on the washer nozzles
- Washer Nozzle
- With Right Washer Nozzle Heater -Z21-
- Removing and Installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
- Washer Fluid Hose Connection
- Center Washer Nozzle
- With Center Washer Nozzle Heater -Z114-
- Removing and Installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
- Left Washer Nozzle
- With Left Washer Nozzle Heater -Z20-
- Removing and Installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
- Grommet
- For the windshield washer fluid hose inside the hood
- Washer Fluid Hose
- For the windshield washer system
- Washer Fluid Reservoir
- For front/rear window washer system and headlamp washer system
- Removing and Installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
- Windshield Washer Pump -V5-
- Black hose connection: on black dual pump connection
- Removing and Installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING .
- Washer Fluid Hose Connection
- Grommet
- Replace if damaged
- Windshield Washer Fluid Level Sensor -G33-
- Removing and Installing. Refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING .
- Grommet
- Replace if damaged
- Bolt
- 8 Nm
- Seal
- Replace if damaged
- Grommet
- Replace if damaged
- Filler Neck
- For the washer fluid reservoir
- Removing and Installing. Refer to WASHER FLUID RESERVOIR FILLER NECK, REMOVING AND INSTALLING .
- Screen
- Cap
- For the filler neck
- Expanding Rivet
