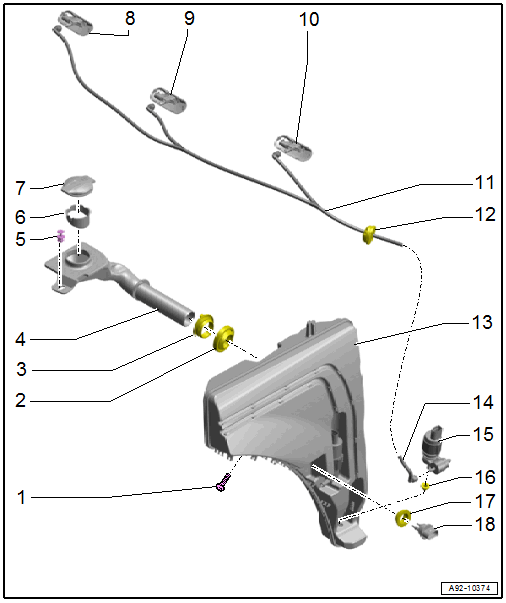

Overview - Windshield Washer System, Before Product Improvement
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 8 Nm
- Seal
- Replace if damaged
- Grommet
- Replace if damaged
- Filler Neck
- For the washer fluid reservoir
- Removing and Installing. Refer to WASHER FLUID RESERVOIR FILLER NECK, REMOVING AND INSTALLING .
- Expanding Rivet
- Screen
- Cap
- For the filler neck
- Right Washer Nozzle
- With Right Washer Nozzle Heater -Z21-
- Removing and Installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
- Center Washer Nozzle
- With Center Washer Nozzle Heater -Z114-
- Removing and Installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
- Left Washer Nozzle
- With Left Washer Nozzle Heater -Z20-
- Removing and Installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
- Washer Fluid Hose
- From the window washer pump
- Grommet
- For the windshield washer fluid hose inside the hood
- Washer Fluid Reservoir
- For front/rear window washer system and headlamp washer system
- Removing and Installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING, BEFORE PRODUCT IMPROVEMENT .
- Washer Fluid Hose
- To the washer nozzles
- Windshield Washer Pump -V5-
- For the front and rear window washer system
- Removing and Installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING .
- Grommet
- Replace if damaged
- Grommet
- Replace if damaged
- Windshield Washer Fluid Level Sensor -G33-
- Removing and Installing. Refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING .
