SUBFRAME, Securing
Special tools and workshop equipment required
- Engine and Gearbox Jack:VAS 6931
- Gearbox Support:T40173
- Locating Pins:T40329 , not illustrated
- Hand drill
- 8.5 mm diameter drill
Gearbox Support:T40173 , Preparing

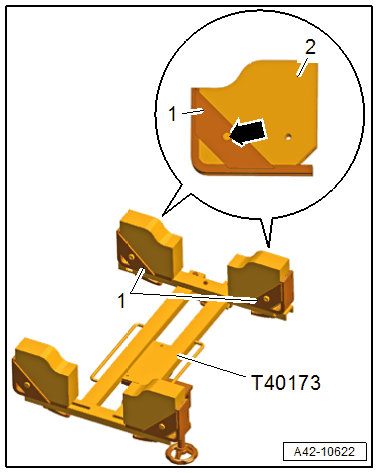

-- Remove the mounting elements -1- from the Gearbox Support:T40173 .
-- Rotate the mounting bracket -2- and drill an 8.5 mm diameter hole -arrow-.
-- Secure the mounting bracket with the bolts and move it to the side.
TIP:
The mounting elements are mounted on the Gearbox Support:T40173 later.
Procedure
- Vehicles with active suspension: pay attention to the safety precautions. Refer to SAFETY PRECAUTIONS WHEN WORKING ON VEHICLES WITH ACTIVE SUSPENSION .
-- Remove the rear wheels. Refer to WHEELS AND TIRES .
-- Remove the left and right underbody trim panels. Refer to UNDERBODY TRIM PANELS, REMOVING AND INSTALLING .
-- Loosen the left and right rear wheel housing liner in the rear area and push slightly to the side. Refer to REAR WHEEL HOUSING LINER, REMOVING AND INSTALLING .
-- Exhaust system without separating point: remove the muffler. Refer to MUFFLER, REMOVING AND INSTALLING - 2.0L , MUFFLER, REMOVING AND INSTALLING - 3.0L .
-- Exhaust system with separating point: remove the exhaust pipe. Refer to OVERVIEW - MUFFLER - 2.0L , OVERVIEW - MUFFLER - 3.0L .
-- Versions with air suspension: perform the system bleeding. Refer to AIR SUSPENSION SYSTEM, FILLING AND BLEEDING .
-- Remove the left and right spring. Refer to SPRING, REMOVING AND INSTALLING .

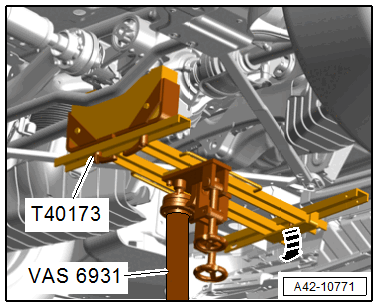

-- Angle the Gearbox Support:T40173 with the adjusting bolt toward the rear -arrow-.
-- Support the subframe with the Engine and Gearbox Jack: VAS 6931 and the Gearbox Support:T40173 on the rear final drive as shown.
-- Remove the diagonal braces. Refer to DIAGONAL BRACES, REMOVING AND INSTALLING .

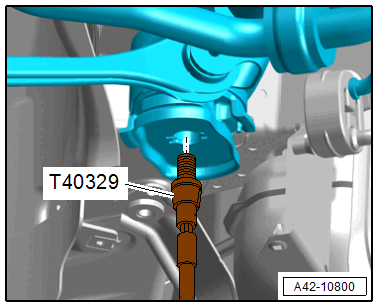

-- Tighten the locating pins of the left and right Locating Pins:T40329 in the front bonded rubber bushing to 20 Nm.

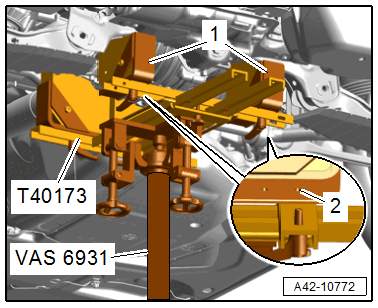

-- Mount the prepared mounting element -1- to the threaded hole -2- on the Gearbox Support:T40173 as shown.
-- Angle the Gearbox Support:T40173 with the adjusting bolt toward the front until the rear mounting bracket contacts the subframe.
-- Compensate the height several times with the Engine and Gearbox Jack:VAS 6931 .
-- Secure the subframe with the tensioning strap of the engine and gearbox jack.
Improper handling increases the risk of damaging the threads in the vehicle body.
- Never use an impact wrench to loosen or tighten.
- Position the bolts by hand only and screw in the first threads.

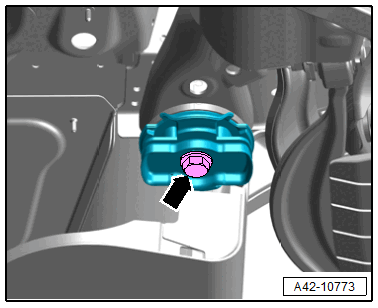

-- Remove the bolts -arrow- on the left and right one after the other. Install a locating pin from the Locating Pins:T40329 .
-- Tighten locating pin to 20 Nm.
- The subframe position is now secured.
Remove the Locating Pins Locating Pins:T40329 .
Removal is performed in the reverse order. Note the following:
-- Only remove one locating pin at a time in a diagonal sequence. Install and tighten a new bolt in this location.
Improper handling increases the risk of damaging the threads in the vehicle body.
- Never use an impact wrench to loosen or tighten.
- Position the bolts by hand only and screw in the first threads.
-- Install the springs. Refer to SPRING, REMOVING AND INSTALLING .
There is a risk of accident due to threaded connections that are not tightened correctly.
- Tighten threaded connections correctly before driving on public roads.
-- A road test must be performed after completing repairs. If steering wheel is crooked, the wheels must be aligned. Refer to AXLE ALIGNMENT .
Tightening Specifications
- Refer to OVERVIEW - SUBFRAME
- Refer to OVERVIEW - UNDERBODY BRACING .
- Refer to OVERVIEW - MUFFLER - 2.0L , OVERVIEW - MUFFLER - 3.0L .
- Refer to OVERVIEW - REAR WHEEL HOUSING LINER .
- Refer to OVERVIEW - UNDERBODY TRIM PANELS .
- Refer to WHEELS AND TIRES
