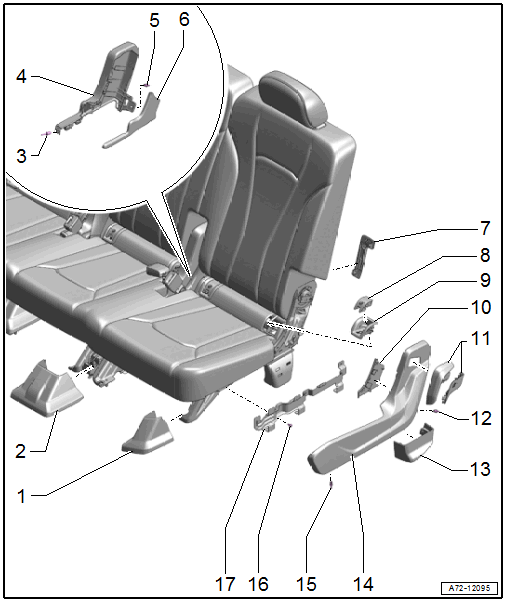

Overview - Bench Seat/Single Seats, Seat Low Trim Panels, Outer Second Row

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

Front Trim Panel
- For stand support on side sill side
- Removing and Installing. Refer to STAND SUPPORT FRONT TRIM PANEL ON SIDE SILL SIDE, REMOVING AND INSTALLING, SEAT LOW, OUTER SECOND ROW .
- Press on until it engages audibly
Trim Panel
- For stand support on tunnel-side
- Removing and Installing. Refer to TUNNEL-SIDE STAND SUPPORT TRIM PANEL, REMOVING AND INSTALLING, SEAT LOW, SECOND ROW .
- Press on until it engages audibly
Expanding Clip
Seat Side Trim Outer Piece
- Tunnel-side
- Removing and Installing. Refer to TUNNEL-SIDE SEAT SIDE TRIM, REMOVING AND INSTALLING, OUTER SECOND ROW SEAT .
Expanding Clip
Seat Side Trim Inner Piece
- Tunnel-side
- Removing and Installing. Refer to TUNNEL-SIDE SEAT SIDE TRIM, REMOVING AND INSTALLING, OUTER SECOND ROW SEAT .
Backrest Hinge Cover
- Removing and Installing. Refer to BACKREST HINGE COVER, REMOVING AND INSTALLING .
Cap
- For the child seat anchor
- Quantity: 4
- Removing and Installing. Refer to LOWER CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING, SECOND AND THIRD ROW .
- Must be secure in the anchor
Guide
- For the lower child seat anchor
- Quantity: 4
- Removing and Installing. Refer to LOWER CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING, SECOND AND THIRD ROW .
- Must be secure in the anchor
Seat Side Trim Inner Piece
- Side Sill Side
- Removing and Installing. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING, OUTER SECOND ROW SEAT .
Handle
- For backrest release
- Removing. Refer to REAR SEAT BACKREST LOCKING MECHANISM HANDLE, REMOVING AND INSTALLING, OUTER SECOND ROW SEAT .
Expanding Clip
Rear Trim Panel
- For stand support on side sill side
- Carefully slide into the mount on the stand support and lock to the inner trim panel
- Removing and Installing. Refer to STAND SUPPORT REAR TRIM PANEL ON SIDE SILL SIDE, REMOVING AND INSTALLING, SEAT LOW, OUTER SECOND ROW .
Seat Side Trim Outer Piece
- Side Sill Side
- Removing and Installing. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING, OUTER SECOND ROW SEAT .
Expanding Clip
Bolt
- 6.5 Nm
Bracket
- For seat side trim on side sill side
- Removing and Installing. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING, OUTER SECOND ROW SEAT .
