Backrest Hinge Cover, Removing And Installing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Pry Lever:80-200
Second Row Seat, Removing
-- Fold the seat forward.

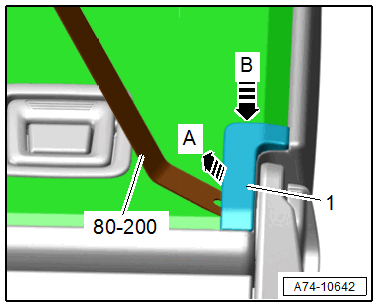

-- Unclip the backrest hinge cover -1- at the position shown in the image using the :80-200 -arrow A- and remove downward -arrow B-.
Third Row Seat, Removing
-- Fold the seat forward.

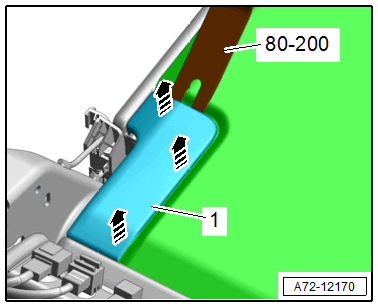

-- Place the : 80-200 on the cover and pry it off -arrows-.
Installing
Install in reverse order of removal.
