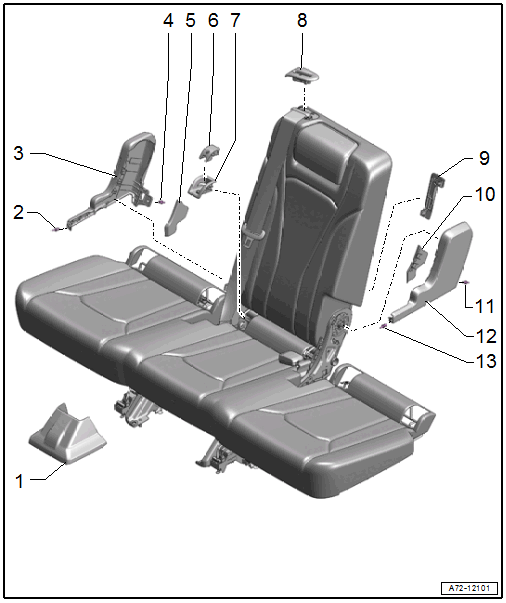

Overview - Bench Seat/Single Seats, Seat Low Trim Panels, Center Second Row

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

Trim Panel
- For stand support on tunnel-side
- Removing and Installing. Refer to TUNNEL-SIDE STAND SUPPORT TRIM PANEL, REMOVING AND INSTALLING, SEAT LOW, SECOND ROW .
Expanding Clip
Seat Side Trim Outer Piece
- Right
- Removing and Installing. Refer to SEAT SIDE TRIM, REMOVING AND INSTALLING, CENTER SECOND ROW SEAT .
Expanding Clip
Seat Side Trim Inner Piece
- Right
- Removing and Installing. Refer to SEAT SIDE TRIM, REMOVING AND INSTALLING, CENTER SECOND ROW SEAT .
Cap
- For the child seat anchor
- Quantity: 4
- Must be secure in the anchor
- Removing and Installing. Refer to LOWER CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING, SECOND AND THIRD ROW .
Guide
- For the lower child seat anchor
- Quantity: 4
- Must be secure in the anchor
- Removing and Installing. Refer to LOWER CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING, SECOND AND THIRD ROW .
Seat Belt Guide
- Removing and Installing. Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING .
Backrest Hinge Cover
- Removing and Installing. Refer to BACKREST HINGE COVER, REMOVING AND INSTALLING .
Seat Side Trim Inner Piece
- Left
- Removing and Installing. Refer to SEAT SIDE TRIM, REMOVING AND INSTALLING, CENTER SECOND ROW SEAT .
Expanding Clip
Seat Side Trim Outer Piece
- Left
- Removing and Installing. Refer to SEAT SIDE TRIM, REMOVING AND INSTALLING, CENTER SECOND ROW SEAT .
Expanding Clip
