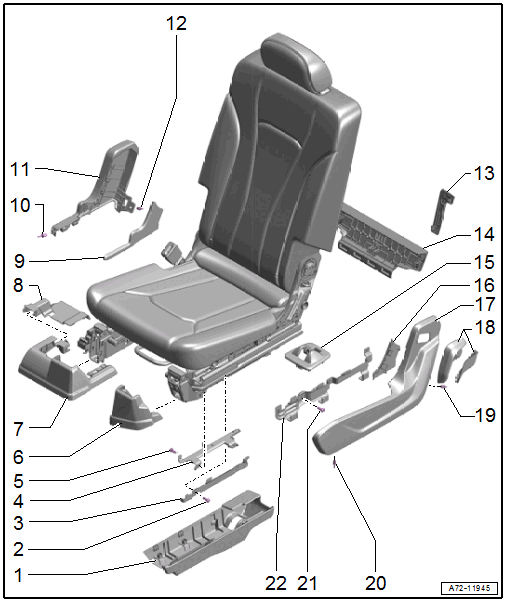

Overview - Bench Seat/Single Seats, Seat High Trim Panels, Outer Second Row

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

Seat Rail Trim Panel
- Carefully engage the catches to the seat rail
- Removing and Installing, Tunnel Side. Refer to TUNNEL-SIDE SEAT RAIL TRIM PANEL, REMOVING AND INSTALLING, SEAT HIGH, OUTER SECOND ROW .
- Removing and Installing, Side Sill Side. Refer to SEAT RAIL TRIM PANEL ON SIDE SILL SIDE, REMOVING AND INSTALLING, SEAT HIGH, OUTER SECOND ROW .
Bolt
- 6.5 Nm
Outer Bracket
- For seat rail trim panel
Inner Bracket
- for seat rail trim panel
Bolt
- 6.5 Nm
Trim Panel
- For hinge on side sill side
- Press on until it engages audibly.
- Removing and Installing. Refer to HINGE TRIM PANEL ON SIDE SILL SIDE, REMOVING AND INSTALLING, SEAT HIGH, OUTER SECOND ROW .
Trim Panel Outer Piece
- For hinge on tunnel side
- Removing and Installing. Refer to TUNNEL-SIDE HINGE TRIM PANEL, REMOVING AND INSTALLING, SEAT HIGH, OUTER SECOND ROW .
Trim Panel Inner Piece
- For hinge on tunnel side
- Removing and Installing. Refer to TUNNEL-SIDE HINGE TRIM PANEL, REMOVING AND INSTALLING, SEAT HIGH, OUTER SECOND ROW .
Seat Side Trim Inner Piece
- Tunnel-side
- Removing and Installing. Refer to TUNNEL-SIDE SEAT SIDE TRIM, REMOVING AND INSTALLING, OUTER SECOND ROW SEAT .
Expanding Clip
Seat Side Trim Outer Piece
- Tunnel-side
- Removing and Installing. Refer to TUNNEL-SIDE SEAT SIDE TRIM, REMOVING AND INSTALLING, OUTER SECOND ROW SEAT .
Expanding Clip
Backrest Hinge Cover
- Removing and Installing. Refer to BACKREST HINGE COVER, REMOVING AND INSTALLING .
Rear Cover
- Removing and Installing. Refer to REAR COVER, REMOVING AND INSTALLING, SEAT HIGH, SECOND ROW .
Trim Panel
- For seat anchor in the floor
- Quantity: 2
- Press on until it engages audibly.
- Removing and Installing. Refer to SEAT ANCHOR TRIM PANEL, REMOVING AND INSTALLING, SEAT HIGH, OUTER SECOND ROW .
Seat Side Trim Inner Piece
- Side Sill Side
- Removing and Installing. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING, OUTER SECOND ROW SEAT .
Seat Side Trim Outer Piece
- Side Sill Side
- Removing and Installing. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING, OUTER SECOND ROW SEAT .
Handle
- For rear seat backrest release
- Removing and Installing. Refer to REAR SEAT BACKREST LOCKING MECHANISM HANDLE, REMOVING AND INSTALLING, OUTER SECOND ROW SEAT .
Expanding Clip
Expanding Clip
- Quantity: 3
Bolt
- 6.5 Nm
Bracket
- For seat side trim on side sill side
- Removing and Installing. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING, OUTER SECOND ROW SEAT .
