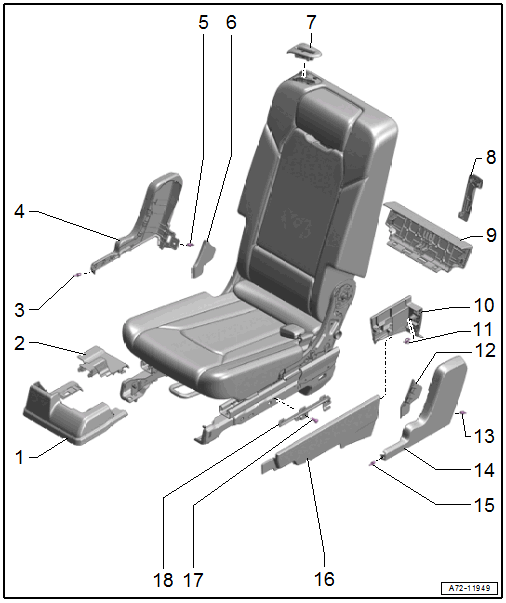

Overview - Bench Seat/Single Seats, Seat High Trim Panels, Center Second Row

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

Trim Panel Outer Piece
- For the hinge
- Removing and Installing. Refer to TUNNEL-SIDE HINGE TRIM PANEL, REMOVING AND INSTALLING, SEAT HIGH, OUTER SECOND ROW .
Trim Panel Inner Piece
- For the hinge
- Removing and Installing. Refer to TUNNEL-SIDE HINGE TRIM PANEL, REMOVING AND INSTALLING, SEAT HIGH, OUTER SECOND ROW .
Expanding Clip
Seat Side Trim Outer Piece
- Right
- Removing and Installing. Refer to SEAT SIDE TRIM, REMOVING AND INSTALLING, CENTER SECOND ROW SEAT .
Expanding Clip
Seat Side Trim Inner Piece
- Right
- Removing and Installing. Refer to SEAT SIDE TRIM, REMOVING AND INSTALLING, CENTER SECOND ROW SEAT .
Seat Belt Guide
- Removing and Installing. Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING .
Backrest Hinge Cover
- Removing and Installing. Refer to BACKREST HINGE COVER, REMOVING AND INSTALLING .
Rear Cover
- Removing and Installing. Refer to REAR COVER, REMOVING AND INSTALLING, SEAT HIGH, SECOND ROW .
Trim Panel Inner Piece
- For the seat rail
- Make sure the clips are fitted correctly
- Removing and Installing. Refer to SEAT RAIL TRIM PANEL, REMOVING AND INSTALLING, SEAT HIGH, CENTER SECOND ROW .
Clamp
- For seat rail trim panel
Seat Side Trim Inner Piece
- Left
- Removing and Installing. Refer to SEAT SIDE TRIM, REMOVING AND INSTALLING, CENTER SECOND ROW SEAT .
Expanding Clip
Seat Side Trim Outer Piece
- Left
- Removing and Installing. Refer to SEAT SIDE TRIM, REMOVING AND INSTALLING, CENTER SECOND ROW SEAT .
Expanding Clip
Trim Panel Outer Piece
- For the seat rail
- Make sure the clips are fitted correctly
- Removing and Installing. Refer to SEAT RAIL TRIM PANEL, REMOVING AND INSTALLING, SEAT HIGH, CENTER SECOND ROW .
Bolt
- 6.5 Nm
Bracket
- For seat rail trim panel
- Removing and Installing. Refer to SEAT RAIL TRIM PANEL, REMOVING AND INSTALLING, SEAT HIGH, CENTER SECOND ROW .
